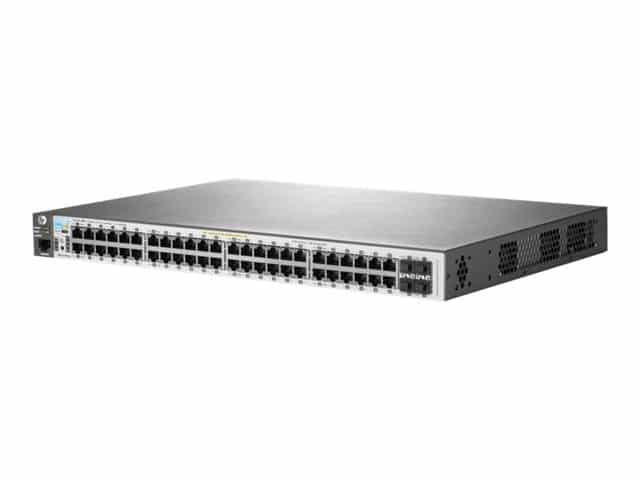

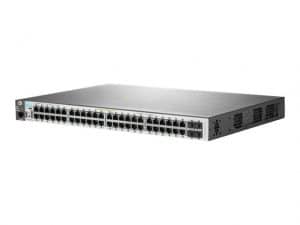

HP 2530-48G POE+ SWITCH PN J9772A
Product Overview
- Cost-Effective, Reliable and Secure Access Layer Switches
- Security and Quality of Service
- Simple Deployment and Management
- Single View of the Network
- Security
- Convergence
- Resiliency and high availability
The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.
- Cost-Effective, Reliable and Secure Access Layer Switches
The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support. Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks. Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode. Limited Lifetime Warranty 2.0 with 3 years 24×7 phone support and no software licensing required. - Security and Quality of Service
The HP 2530 Switch Series supports flexible authentication methods including Local MAC Authentication, 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication. Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS. Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP). Defend your IPv6 network with DHCPv6 Protection. - Simple Deployment and Management
The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports. Quiet operation with fanless and variable speed fan models. Flexible deployment with wall, table, and rack mounting options. TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks. - Single View of the Network
The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management. RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events. - Security
Access control lists (ACLs): accommodates IPv4/IPv6 port and VLAN-based ACLs (IPv6 ACL is supported only on Gigabit Ethernet and 48-port models). Source-port filtering: allows only specified ports to communicate with each other. RADIUS/TACACS+: eases switch management security administration by using a password authentication server. Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch. Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator. - Convergence
LLDP-MED (Media Endpoint Discovery): defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones. IP multicast (data-driven IGMP): prevents flooding of IP multicast traffic. IEEE 802.1AB Link Layer Discovery Protocol (LLDP): facilitates easy mapping using network management applications with LLDP automated device discovery protocol. PoE and PoE+ allocations: support multiple method (automatic, IEEE 802.3at dynamic, LLDP-MED fine grain, IEEE 802.3af device class, or user specified) to allocate and manage PoE/PoE+ power for more efficient energy use. Voice VLAN: uses LLDP-MED to automatically configure a VLAN for IP phones. - Resiliency and high availability
Port trunking and link aggregation: Trunking: supports up to eight links per trunk to incre
Technical Specifications
| Product Description | HPE 2530-48G-PoE+ Switch – switch – 48 ports – Managed – desktop, rack-mountable, wall-mountable |
| Device Type | Switch – 48 ports – Managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Throughput : 77.3 Mpps ¦ Switching capacity : 104 Gbps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9220 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI |
| Features | Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Multicast Suppression, STP Root Guard, LLDP support, dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.3 cm x 32.26 cm x 4.45 cm |
| Weight | 4.72 kg |
