Description

Cisco® Catalyst® 2960 Series ws-c2960-24-s Switches with LAN Lite software are fixed-configuration, standalone switches that provide desktop Fast Ethernet connectivity for entry-level wiring closet and small branch office networks. The Cisco Catalyst 2960 LAN Lite Series Switches simplify the migration from nonintelligent hubs and unmanaged switches to a fully scalable managed network. The LAN Lite Cisco IOS® Software provides entry-level security, quality of service (QoS), and availability capabilities while lowering the network total cost of ownership.

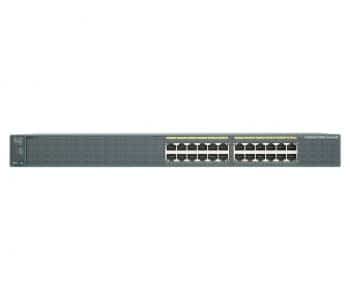

Cisco Catalyst 2960 24 10/100 LAN Lite

Specifications

AC/DC Support
AC only

Dimensions (H x W x D)
1.73 x 17.5 x 9.3 in. (4.4 x 44.5 x 23.6 cm)

Max. Watt Power Consumption
30

Operating Relative Humidity
10% to 95% noncondensing

Ports
24

Operating Temperature up to 5000 ft (1500 m)
23 to 113 F (-5 to 45 C)

Uplinks
none

Short-term Exception up to 10,000 feet (3000 m)
23 to 113 F (-5 to 45 C)

Short-term Exception up to 13,000 feet (4000 m)
23 to 104 F (-5 to 40 C)

Operating Temperature up to 10,000 ft (3000 m)
23 to 104 F (-5 to 40 C)

Storage Altitude
Up to 13,000 feet (4000 m)

Storage Relative Humidity
10% to 95% noncondensing

Short-term Exception up to 5000 feet (1500 m)
23 to 122 F (-5 to 50 C)

Model
LAN Base Layer 2

Storage Temperature up to 15,000 feet (4573 m)
-13 to 158 F (-25 to 70 C)

Short-term Exception at Sea Level
23 to 131 F (-5 to 55 C)

Operating Altitude
Up to 10,000 feet (3000 m)

Packets per second (Mpps)
3.6

Power Consumption
Measured 100% Throughput (with Max. PoE loads) of 22
