Description

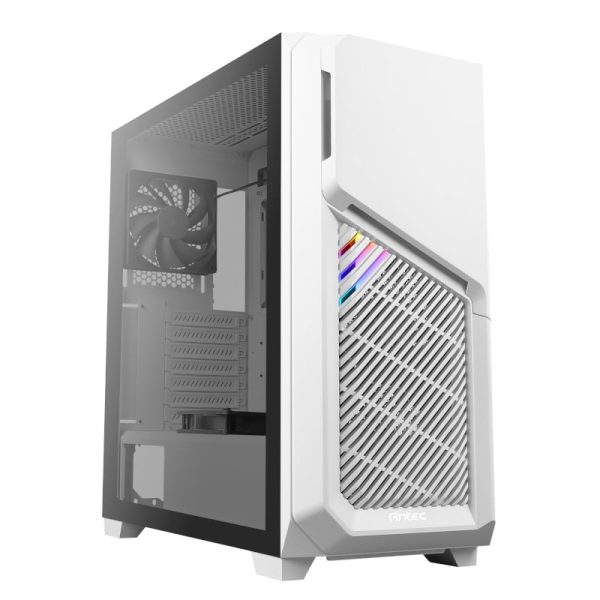

The Antec DP502 FLUX White mid-tower gaming chassis is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation.
To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform. What is the F-LUX Platform? The definition of FLUX is Flow Luxury. The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined with 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance.
The electroplating-processed LED on the top left-hand side of the front panel presents a Sci-Fi vibe. The DP502 also comes with a 4mm thick tempered glass side panel. With a tool-free thumbscrew design at the rear of the tempered glass side panel, which gives you quick access to the interior, and enhances the solidity.
FEATURES:
- ATX | Micro-ATX | ITX support
- 3 x Front and 1 x Rear and 1 x PSU Shroud Fans Included
- 4 mm Tempered Glass Side Panel
- Sci-Fi Designed Vented Front Panel
- Built-in LED Controller
- USB3.0 and ARGB Control on I/O panel
- 405mm GPU support
- 175mm CPU cooler Support
SPECIFICATIONS:
- Materials: Steel | Plastic
- Dimensions: 46.3 x 22 x 48.6 cm
- Form Factor: Mid-Tower
- Motherboard Support: ATX, Micro-ATX, ITX
- I/O Ports: Power, LED Control Button, 2 x USB3.0, HD-Audio
- Side Panel: 4 mm Tempered Glass Side Panel
- Expansion & Drive Bays
- Expansion Slots x7
- 5.25″ x1
- 3.5″/2.5″ (convertible) x3/2
- 2.5″ x3
- Fan Support:
- Front 3 x 120mm / 2 x 140mm
- Top 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket), 2 x 120 mm / 2 x 140 mm (w/o ODD but with ODD bracket) 2 x 120 mm / 1 x 140 mm (When ODD is installed)
- Power Supply Shroud 2 x 120mm
- Rear 1 x 120mm
- Included Fans 3 x 120mm fans in front, 1 x 120mm fan (Reverse Fan) on PSU shroud & 1 x 120mm fan in rear
- Radiator Support
- Front ≤ 360mm (≤ 55 mm thickness when fans are installed outside of front panel) (≤ 30 mm thickness when fans are installed inside of front panel) [Max Radiator Length ≤ 405 mm]
- Top ≤ 360mm (w/o ODD and w/o ODD bracket) 240/280 mm (w/o ODD but with ODD bracket) 120 mm(When ODD is installed) [Max Radiator Length ≤ 405 mm]
- Rear 120mm
- Clearance
- Max GPU Length ≤ 405mm
- Max CPU Cooler Height ≤ 175mm
- Max PSU Length ≤ 205mm
- Dust Filters: Front/Top/Bottom/Right Hand Side
- Weight: 7550 g
WHAT’S IN THE BOX:
- Antec DP502 FLUX White ATX Mid-Tower Gaming Chassis x1
