Description

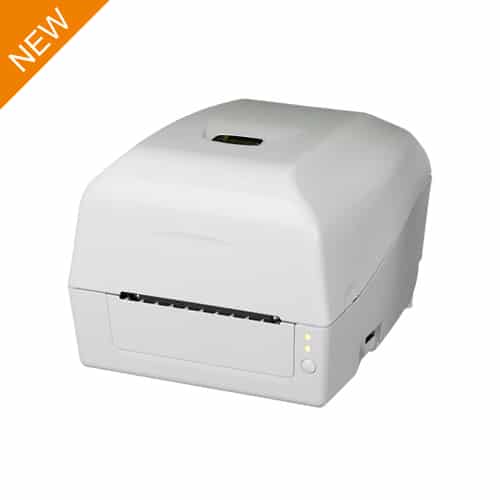

Argox CP-2140EX
Models List: CP-2140EX
• Shell Suit design
• Easy to load media
• Durable life
• Performance enhance
CP-2140EX Using new generation desktop printer to save time and money.Feature-rich to make daily work simple and easy.
Shell Suit design:Interface roof feature can avoid interface from water spill damage and keep machine close to wall, reduce operating space.
Easy to load media:Large loading space to help media and ribbon installation very easily.
Durable life:Inherited the turtle spirit, integrated structure makes CP-EX Series solid and robust.
Performance enhance:Print speed is faster 20% than old CP series, expanded SDRAM and Flash ROM can store more fonts, forms, graphics.
DOWNLOAD BROCHURE HERE
| Printing Method | Direct Thermal & Thermal Transfer |
| Printing Resolution | 203 dpi(8 dots/mm) |
| Printing Speed | Max. 6 ips |
| Printing Length | Max. 100”(2540mm) |
| Printing Width | Max. 4.2”(108mm) |
| Memory | 32MB DRAM (3.6MB available for user) /16MB Flash ROM (8.4MB available for user) |
| CPU Type | 32 bit RISC microprocessor |
| Sensors | Reflective sensor x 1 (Movable) & Media Transmissive sensor x 1 (centrally positioned) |
| Operation Interface | LED Indicator x 2, Button(Feed) x 1 |
| Communication Interface | USB (A/B), LAN (10/100Mbps), Serial (RS-232)(transmission rate: up to 115200 bps) |
| Fonts | Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0° ~ 270° rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font (Optional) |
| Wireless Security | N/A |
| 1D Barcodes | PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、 EAN-13、 EAN-8、 HBIC、 Codabar、 Plessey、UPC2、 UPC5、 Code 93、 Postnet、 UCC/EAN-128、 ,UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、I nterleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、UPC-A、UPC-E、Matrix 2 of 5、UPC-Interleaved 2 of 5、 Code 39 with check sum digit 、 Code 93、 EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、 German Postcode、 Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、 64 Compact Printer Series – User’s Manual GS1 Data bar (RSS) PPLZ: Code39、UPC-A、UPC-E、Postnet、Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum 、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、 GS1 Data bar (RSS) 、 Industrial 2 of 5、Standard 2 of 5、Logmars |
| 2D Barcodes | PPLA: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes PPLB: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes PPLZ: QR code、、PDF417、Data Matrix (ECC 200 only) 、MaxiCode Composite Codes |
| Graphics | PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, PCX , BMP , Binary Raster, and GDI PPLZ: GRF, Hex and GDI |
| Emulation | PPLA, PPLB, PPLZ(Optional) |
| Software-label Editing | BarTender® from Seaguall Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) |
| Windows Compatibility | N/A |
| Software-utility | Printer Utility, Font Utility |
| Driver tools | Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver |
| Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
| Media | Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) 5”(127mm) OD on a 1” (25.4mm) ID core |
| Ribbon | Ribbon width: 1”~4”(25.4mm~102mm), Ribbon length: Max. 300m. Core size ID 1”(25.4mm) or 0.5”(12.7mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
| Drop Resistance | N/A |
| Printer Dimensions | W 226mm x H 188mm x D 276mm |
| Printer Weight | 2.1 kgs |
| Power Source | Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A |
| Battery | N/A |
| Operation Environment | Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) |
| Real Time Clock | N/A |
| Standard Item | N/A |
| Optional Items | Guillotine Cutter, Rotary Cutter, Peeler, External media stand |
| Agency Listing | CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC |
| Attention | *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. |
