Description
The Cisco C9300-48T-A Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. They are the industry’s most flexible architecture switches with the highest port density through its 480Gbps bandwidth. Built for security, IoT, mobility, and cloud these switches are ready for the future with native abilities enabling them to host containers and run third-party applications and scripts on the switch. A Modern operating system, open Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

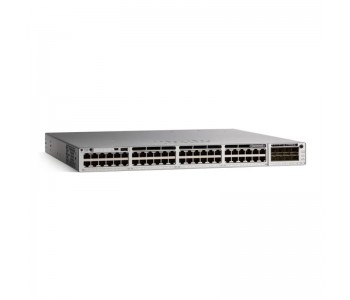

Catalyst 9300 48-Port Data Switch, Network Advantage
Specifications
C9300-48T-A
General Information
Switching capacity: 256 Gbps
Stacking bandwidth: 736 Gbps
Forwarding Rate: 190.47 Mpps
Forwarding rate with stacking: 547.62 Mpps
Total number of MAC addresses: 32,000
Total number of IPv4 routes (ARP plus learned routes): 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries: 32,000
IPv6 routing entries: 16,000
Multicast routing scale: 8000
QoS scale entries: 5120
ACL scale entries: 5120
FNF entries: 64,000 flow
VLAN IDs: 4094
Total Switched Virtual Interfaces (SVIs): 1000
Jumbo frames: 9198 bytes
Total routed ports per 9300 Series stack: 448
Memory
RAM (installed): 8 GB
RAM Technology: RAM
Memory Notes
8GB DRAM
16GB flash
Packet buffer per SKU: 16 MB
Operating System
OS Provided: Cisco IOS XE 16.5
Ports/Connectors
(48) GbE RJ-45
(1) USB 2.0
Power
# Power Supplies Installed: 1
# Power Supplies Supported: 2
Power Provided: 350 watt(s)
Power Notes
Input: 100 to 240 VAC, 50 to 60 Hz, 10-5A
Dual redundant power supplies supported (switch ships with one power supply)
Default power supply: PWR-C1-350WAC
Protocols
Networking Protocol: Gigabit Ethernet
Remote Management Protocol: CLI, SNMP
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
