Description
The Cisco C9404R Series switches are Cisco’s leading modular enterprise switching access, distribution and core platform built for security, IoT and cloud. Delivering state of the art High Availability (HA) with capabilities like Cisco. StackWise. Virtual technology with In-service-software-upgrade (ISSU), SSO/NSF, uplink resiliency, N+1/N+N redundancy for power supplies.

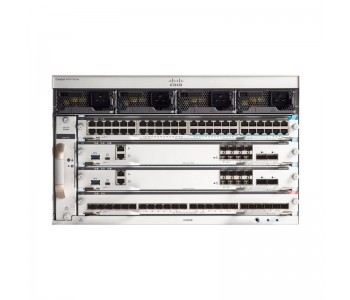

Cisco Catalyst 9400 Series 4 Slot Chassis
Specifications
C9404R
General
Device Type
Switch
Enclosure Type
Side to side airflow rack-mountable 6U
Features
Fan tray
Expansion Slots
4 (total) / 4 (free) x line-card slot ¦ 2 (total) / 2 (free) x supervisor slot
Installed Modules Qty (Max)
0 (installed) / 4 (max)
Power Device
Internal power supply – hot-plug
Installed Qty
0 (installed) / 4 (max)
Power Redundancy
Optional
Power Redundancy Scheme
N+N (with optional power supply)
Voltage Required
AC 120/230 V
Width
17.3 in
Depth
16.3 in
Height
10.4 in
Weight
37.92 lbs
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, EN 55022 Class A, CNS 13438 Class A, EN 300 386, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, KN35, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317
