Description
The Cisco C9407R Series switches are Cisco’s leading modular enterprise switching access, distribution and core platform built for security, IoT and cloud. Delivering state of the art High Availability (HA) with capabilities like Cisco. StackWise. Virtual technology with In-service-software-upgrade (ISSU), SSO/NSF, uplink resiliency, N+1/N+N redundancy for power supplies.

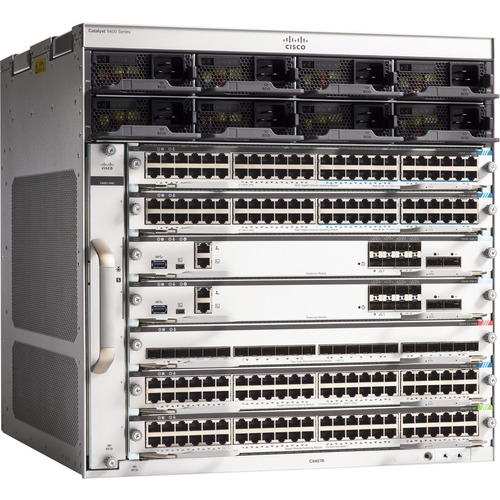

Cisco Catalyst 9400 Series 7 Slot Chassis
Specifications
C9407R
General Information
Total number of slots: 7
Line-card slots: 5
Supervisor engine slots: 2
Dedicated supervisor engine slot numbers: 3 and 4
Supervisor engine redundancy: Yes
Supervisor engines supported: C9400-SUP-1
Maximum Bandwidth scalability per line-card slot: Up to 480 Gbps on all slots
Maximum Bandwidth per Slot: 80 Gbps/slot
O/S Notes
Minimum software requirement: Cisco Open IOS-XE Software Release 16.6.1
Ports/Connectors
Expansion slots:
(5) Line-card slots
(2) Supervisor slots
(8) Power in
Maximum Port Density:
(240) 10/100/1000BASE-T Gigabit (RJ-45)
(240) 10/100/1000BASE-T Gigabit Ethernet with POE+
(240) Switched 10/100/1000BASE-T Gigabit Ethernet with UPOE ports
Power
# Power Supplies Installed: 0
# Power Supplies Supported: 8
Power Notes
Maximum PoE per slot: 2880W
Number of power supply bays: 8
AC input power: Yes
Integrated PoE: Yes
Power supplies supported: 3200W AC
There are no power supplies pre-installed.
Protocols
Networking Protocol: Gigabit Ethernet, PoE+, UPoE
