Description
The Cisco C9410R Series switches are Cisco’s leading modular enterprise switching access, distribution and core platform built for security, IoT and cloud. Delivering state of the art High Availability (HA) with capabilities like Cisco. StackWise. Virtual technology with In-service-software-upgrade (ISSU), SSO/NSF, uplink resiliency, N+1/N+N redundancy for power supplies.

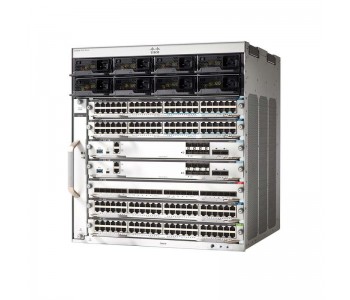

Cisco Catalyst 9400 Series 10 Slot Chassis
Specifications
C9410R
Device Type
Switch – with 2 x C9400-LC-48U, Cisco ONE Advantage License, Cisco Catalyst 9400 Series Supervisor-1
Enclosure Type
Rack-mountable 13U
Power Over Ethernet (PoE)
PoE
Expansion Slots
8 (total) / 8 (free) x line-card slot ¦ 2 (total) / 2 (free) x supervisor slot
Installed Modules Qty (Max)
0 (installed) / 10 (max)
Power Device
Internal power supply – hot-plug
Installed Qty
0 (installed) / 8 (max)
Power Redundancy
Optional
Power Redundancy Scheme
N+N (with optional power supply)
MTBF
627,000 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, ETSI 300 019, ETS300019-2-3, EN 55022 Class A, CNS 13438 Class A, EN 300 386, KN35, KN32 Class A, ETS300019-2-1, ETS300019-2-2, EN 55032 Class A, SR-3580 NEBS Level 3, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317
