Description

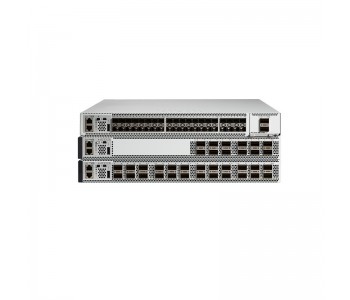

The Cisco C9500-40X-E Series is the first 100/40-Gbps switch purpose built for the enterprise campus. Modern applications are multinode, highly modular, and deployed over a combination of bare-metal, virtual, and cloud data center environments. Data center networks are required to be simple, programmable, extensible, scalable, and shareable to meet the Modern day demands of applications. The Catalyst 9500 fixed-core switches are high-density building blocks for a next-Generation, intent-based network. Offering a comprehensive selection of Line cards that provide 1-, 10-, 25-, 40-, 50-, and 100-Gigabit Ethernet interfaces through bandwidth of up to 172.8 Terabits. Unique fabric Modules and Fan Trays are used to plug in vertically in the rear of the chassis while supervisor, system controller, power supplies and Line cards are common parts.
Specifications
C9500-40X-E
Device Type
Switch – 40 ports – L3 – managed
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
40 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
UPOE
Performance
Switching capacity (full duplex): 480 Gbps ¦ Forwarding rate: 720 Mpps
Capacity
Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
MAC Address Table Size
64K entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Encryption Algorithm
256-bit AES
Features
IGMP snooping, Syslog support, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, Remote Switch Port Analyzer (RSPAN), NetFlow, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Location ID Separation Protocol (LISP), Open Shortest Path First (OSPF), VLAN Double Tagging (Q-in-Q), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Cisco StackWise Virtual
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
Processor
1: 2.4 GHz
RAM
16 GB – DIMM 288-pin – DDR4 SDRAM
Flash Memory
16 GB
Built-in Devices
RFID tag
