Description
The Cisco C950016X-E Series is the first 100/40-Gbps switch purpose built for the enterprise campus. Modern applications are multinode, highly modular, and deployed over a combination of bare-metal, virtual, and cloud data center environments. Data center networks are required to be simple, programmable, extensible, scalable, and shareable to meet the Modern day demands of applications. The Catalyst 9500 fixed-core switches are high-density building blocks for a next-Generation, intent-based network. Offering a comprehensive selection of Line cards that provide 1-, 10-, 25-, 40-, 50-, and 100-Gigabit Ethernet interfaces through bandwidth of up to 172.8 Terabits. Unique fabric Modules and Fan Trays are used to plug in vertically in the rear of the chassis while supervisor, system controller, power supplies and Line cards are common parts.

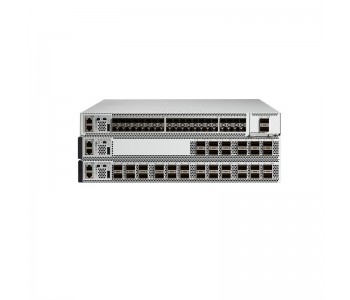

Cisco Catalyst 9500 16-Port 10G Switch
Specifications
C950016X-E
Switching capacity
Up to 480 Gbps
Forwarding rate
Up to 360 Mpps
Total number of MAC addresses
Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)
Up to 64,000 indirect
Up to 80,000 host
Total number of IPv6 routes
Up to 32,000 indirect
Up to 40,000 host
QoS ACL scale
Up to 18000
Security ACL scale
Up to 18000
FNF entries
Up to 512,000
DRAM
16 GB
Flash
16 GB
VLAN IDs
4000
Total Switched Virtual Interfaces (SVIs)
4000
Jumbo frame
9198 bytes
Power Supply Selection
PWR-C4-950WAC-R or PWR-C4-950WDC-R
Power max rating
950 W
Dimensions (H x W x D)
1.73 x 17.5 x 21.52 in
Rack units (RU)
1 RU
Input voltage
90 to 264 VAC
Operating temperature
32° to 104°F (0° to 40°C)
Storage temperature
-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing
Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude
Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
MTBF (hours)
315,790
