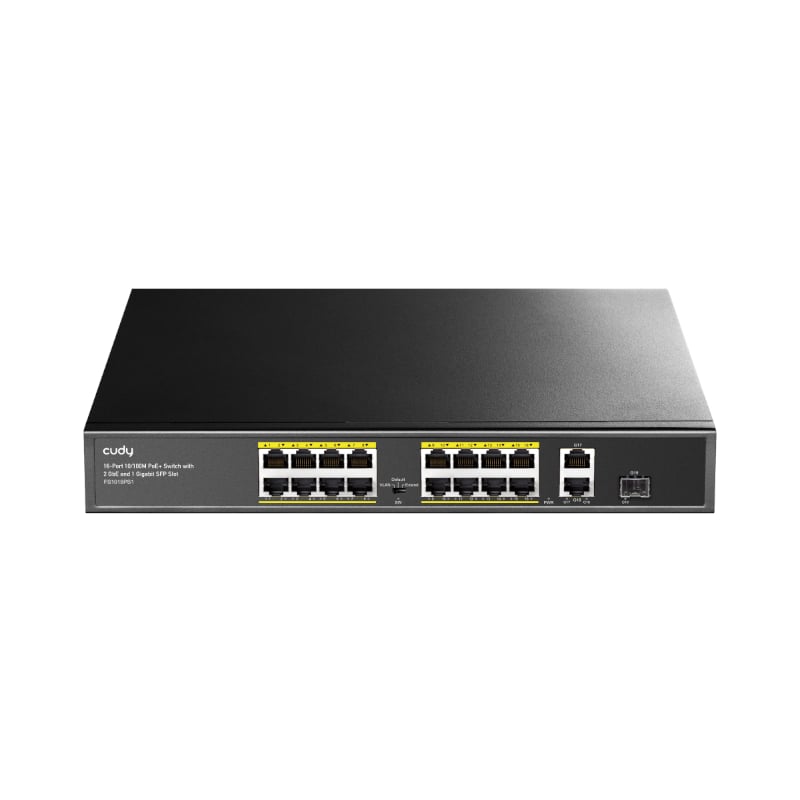

Cudy 16-Port Unmanaged PoE+ Switch – Rack Mount

Description

The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high-definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance.

The 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.

Used for many applications the Cudy FS1018PS1 works with IP Cameras for home, office or small businesses. Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to ensure stable product operation.

FEATURES:

• 200 watts PoE power supply, up to 30 watts per port
• 2 10/100/1000M uplink ports +1 SFP Port
• 16 10/100M PoE+ ports
• CCTV mode supports remote PoE feeding up to 250m
• VLAN mode isolates each PoE Ports for security
• IEEE 802.3at / IEEE 802.3af standard compliant
• Plug&play, simple setup with no configuration needed
• Watchdog reactivates the abnormalPD by resuming POE power

SPECIFICATIONS:

• Power
  • Power Supply: Built-in power supply
  • Voltage Range: AC100~240V
  • Consumption: 190W for 16 PoE
• Ethernet
  • Speed
    • 1~16 Port: 10/100/Mbps
    • G17~G18 Port:10/100/1000Mbps
    • G19 Port: SFP 1.25bps
  • Transmission Distance
    • 100Meter(328ft)for RJ-45
    • The distance is determined by the optical module
    • The optical module is optional
• Network Switch:
• Ethernet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at
• Switching Capacity: 7.2G
• Transfer Rate:
  • 14880 pps for 10Mbps
  • 148800 pps for 100Mbps
  • 1488000 pps for 1000Mbps
• MAC Adsress: 4K MAC sddress table
• Link/ACT:
  • On(Green): The port is connecting
  • Blinks: The port is receiving or transmitting data.
  • Off: The port is not linked successfully with the device
• POE
  • On(Orange): PD is connected
  • Off: No PD is connected or power forwarding fails
  • PoE Pin Assignment: V+(RJ45 Pin 1, 2) – (RJ45 Pin 3,6)
• Colour: Grey
• Product Dimensions: 28 x 18 x 4.4 cm

WHAT’S IN THE BOX:

• Cudy FS1018PS1 18-Port 10/100M PoE+ Switch – Grey x1
• Power Adapter x1
