Description

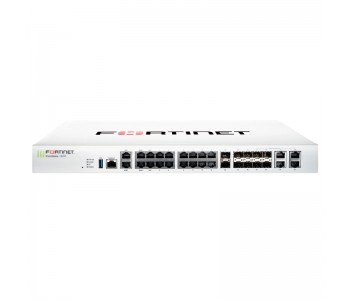

The FortiGate FG-101F series delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
22x GE RJ45 Ports (Including 2x WAN Ports, 1x DMZ Port, 1x Mgmt Port, 2x HA Ports, 16x Switch Ports with 4 SFP Port Shared Media), 4 SFP Ports, 2x 10 GE SFP+ FortiLinks, 480GB Onboard Storage, Dual Power Supplies Redundancy
Specifications
FG-101F
Actual Weight
7.56
General Information
System Performance – Enterprise Traffic Mix:
IPS Throughput: 2.6 Gbps
NGFW Throughput: 1.6 Gbps
Threat Protection Throughput: 1 Gbps
System Performance:
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets): 5 µs
Firewall Throughput (Packets Per Second): 15 Mpps
Concurrent Sessions (TCP): 1.5 Million
New Sessions/Second (TCP): 56,000
Firewall Policies: 10,000
IPsec VPN Throughput (512 byte): 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,500
Client-to-Gateway IPsec VPN Tunnels: 16,000
SSL-VPN Throughput: 750 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 500
SSL Inspection Throughput (IPS, avg. HTTPS): 1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS): 1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 135,000
Application Control Throughput (HTTP 64K): 2.2 Gbps
CAPWAP Throughput (HTTP 64K): 15 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of FortiSwitches Supported: 24
Maximum Number of FortiAPs (Total / Tunnel Mode): 64 / 32
Maximum Number of FortiTokens: 5,000
Maximum Number of Registered FortiClients: 600
High Availability Configurations: Active / Active, Active / Passive, Clustering
Memory Notes
Internal storage: 1x 480 GB SSD
Ports/Connectors
(12) GE RJ45
(4) GE SFP
(2) 10GE SFP+
(2) GE RJ45 WAN
(4) GE RJ45/SFP shared
(1) USB
(1) Console
(2) GE RJ45 management/DMZ
(2) GE RJ45 High Availability
Power Notes
Power Required: 100–240V AC, 60–50 Hz
Maximum Current: 100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum): 35.3 W / 39.1 W
Protocols
Networking Protocol: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Transport Protocol: IPSec
