Description

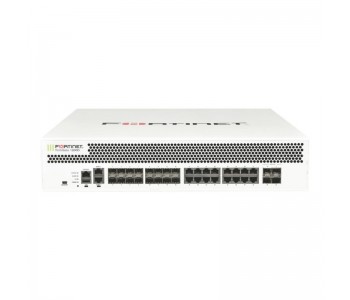

The FortiGate FG-1200D delivers high performance threat protection for mid-sized to large enterprises and service providers, with the flexibility to be deployed at the internet or cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, industry-leading security efficacy and high throughput of the 1200D keeps your network connected and secure.
4x 10GE SFP+ Slots, 16x GE SFP Slots, 18x GE RJ45 Ports (Including 16 Ports, 2x Management/HA Ports), SPU NP6 and CP8 Hardware Accelerated, 240 GB SSD Onboard Storage, Dual AC Power Supplies
Specifications
FG-1200D
General Information
SYSTEM PERFORMANCE AND CAPACITY:
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 72 / 72 / 52 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 72 / 72 / 52 Gbps
Firewall Latency (64 byte, UDP): 3 µs
Firewall Throughput (Packet per Second): 78 Mpps
Concurrent Sessions (TCP): 11 Mil
New Sessions/Second (TCP): 290,000
Firewall Policies: 100,000
IPsec VPN Throughput (512 byte): 48 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 20,000
Client-to-Gateway IPsec VPN Tunnels: 50,000
SSL-VPN Throughput: 3.6 Gbps
Concurrent SSL-VPN Users (Recommended Maximum): 10,000
IPS Throughput (HTTP / Enterprise Mix): 11 / 6.8 Gbps
SSL Inspection Throughput: 6 Gbps
NGFW Throughput: 2.4 Gbps
CAPWAP Throughput: 15 Gbps
Virtual Domains (Default / Maximum): 10 / 250
Maximum Number of FortiAPs (Total / Tunnel): 4,096 / 1,024
Maximum Number of FortiTokens: 5,000
Maximum Number of Registered Endpoints: 8,000
High Availability Configurations: Active-Active, Active-Passive, Clustering
ENVIRONMENTAL PROPERTIES:
Rackmount: 2RU
Operating Temperature: 32 to 104 F (0 to 40 C)
Storage Temperature: -31 to 158 (-35 to 70 C)
Humidity: 10 to 90%, non-condensing
Operating Altitude: Up to 9843 ft. (3000 m.)
Memory Notes
240 GB Onboard Storage
Ports/Connectors
(4) GE SFP+
(16) GE SFP
(16) GE RJ-45
(2) GE RJ-45 management
(1/1) USB (client/server)
(1) console
Power Notes
AC Power Supply: 100 to 240 VAC, 50 to 60 Hz
Maximum Current: 100V / 8 A, 220 V / 4 A
Power Consumption (Average, Maximum): 270 W, 332 W
Heat Dissipation: 1132 BTU/hour
Redundant hot-swappable power supplies
Protocols
Networking Protocol: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Transport Protocol: IPSec
