Description
The FortiGate FG-140E-POE series delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.

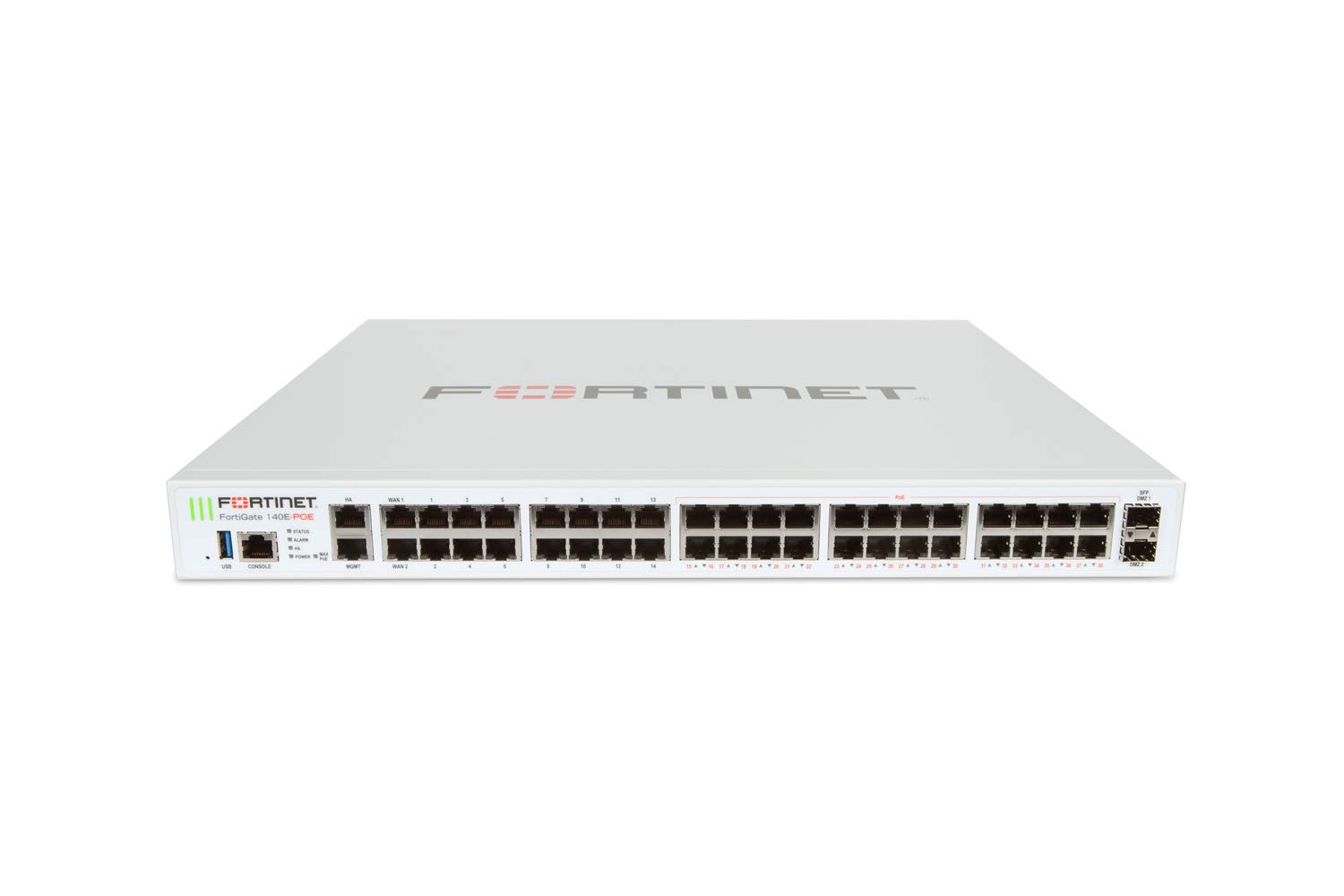

![FG-140E-POE](https://www.acumentech.co.za/wp-content/uploads/2021/03/FG-140E-POE-1024x683.jpg)
42x GE RJ45 Ports (Including 2x WAN Ports, 1x Mgmt Port, 1x HA Port, 24x RJ45 GE PoE/PoE+ Ports, 14x Switch Ports), 2x GE SFP DMZ Slots. Maximum Managed FortiAPs (Total / Tunnel) 64/32
Specifications
FG-140E-POE
Form Factor
Rack-mountable
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Firewall throughput (1518-byte UDP): 7.4 Gbps ¦ Firewall throughput (512-byte UDP): 7.4 Gbps ¦ Firewall throughput (64-byte UDP): 4.4 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 6.6 Mpps ¦ VPN throughput (512-bit IPSec): 4 Gbps ¦ VPN throughput (SSL): 250 Mbps ¦ SSL inspection throughput: 190 Mbps ¦ Application control (AVC) throughput: 1 Gbps ¦ CAPWAP throughput (1444 byte, UDP): 1.5 Gbps ¦ IPS throughput (optimal traffic mix): 1.9 Gbps ¦ IPS throughput (enterprise traffic mix): 500 Mbps ¦ NGFW throughput: 360 Mbps ¦ Threat protection throughput: 250 Mbps
Capacity
Concurrent TCP sessions: 2000000 ¦ New TCP sessions per second: 30000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 10000 ¦ Concurrent SSL VPN users: 300 ¦ Virtual domains: 10 ¦ Maximum number of switches: 24 ¦ Number of FortiAP devices: 64 ¦ Number of FortiToken devices: 1000 ¦ Number of registered FortiClients: 600
Status Indicators
Power, status, alarm, HA
Features
Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection
Encryption Algorithm
SSL, 128-bit AES, 256-bit SHA, TLS 1.2
Compliant Standards
IEEE 802.3at
Interfaces
2 x 1000Base-T – RJ-45 (WAN) ¦ 14 x 1000Base-T – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB – Type A ¦ 2 x 1000Base-X – SFP (mini-GBIC) (DMZ) ¦ 1 x 1000Base-T – RJ-45 ¦ 1 x console ¦ 24 x 1000Base-T (PoE+) – RJ-45 – 30 W
