Description

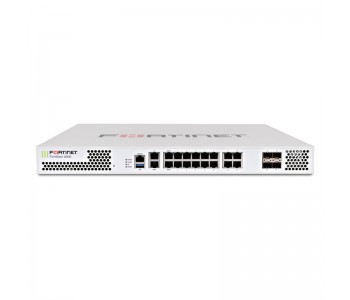

The FortiGate FG-200E series delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
18x GE RJ45 (Including 2x WAN Ports, 1x Mgmt Port, 1x HA Port, 14x Switch Ports), 4x GE SFP Slots. SPU NP6Lite and CP9 Hardware Accelerated
Specifications
FG-200E
Form Factor
Rack-mountable
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Firewall throughput (1518-byte UDP): 20 Gbps ¦ Firewall throughput (512-byte UDP): 20 Gbps ¦ Firewall throughput (64-byte UDP): 9 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 13.5 Mpps ¦ VPN throughput (512-bit IPSec): 9 Gbps ¦ VPN throughput (SSL): 900 Mbps ¦ IPS throughput (HTTP): 6 Gbps ¦ IPS throughput: 2.2 Gbps ¦ SSL inspection throughput: 1 Gbps ¦ Application control (AVC) throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.2 Gbps ¦ CAPWAP throughput: 1.5 Gbps ¦ NGFW throughput: 1.8 Gbps
Capacity
Concurrent TCP sessions: 2000000 ¦ New sessions per second: 135000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 5000 ¦ Concurrent SSL VPN users: 300 ¦ Number of FortiAP devices: 128 ¦ Number of FortiClient devices: 600 ¦ Virtual domains: 10 ¦ Number of FortiToken devices: 1000
Status Indicators
Power, status, alarm, HA
Features
Firewall protection, VPN support, content filtering, manageable, High Availability, Intrusion Prevention System (IPS), anti-virus protection
Encryption Algorithm
SSL
Interfaces
2 x 1000Base-T – RJ-45 (WAN) ¦ 14 x 1000Base-T – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x USB 2.0 – Type A ¦ 4 x 1000Base-X – SFP (mini-GBIC) ¦ 2 x 1000Base-T (management) – RJ-45
