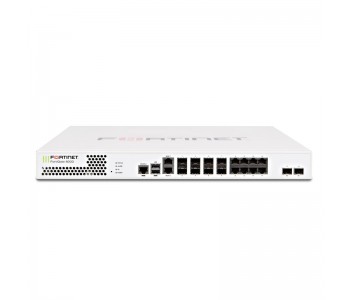

Description
The FortiGate FG-600D delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or data center edge and Internal segments. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.
2x 10GE SFP+ Slots, 10x GE RJ45 Ports, 8x GE SFP Slots, SPU NP6 and CP8 Hardware Accelerated, 120 GB Onboard SSD Storage
Specifications
FG-600D
General Information
System Performance and Capacity:
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 36 / 36 / 24 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 36 / 36 / 24 Gbps
Firewall Latency (64 byte, UDP): 3 µs
Firewall Throughput (Packet per Second): 36 Mpps
Concurrent Sessions (TCP): 5.5 Million
New Sessions/Second (TCP): 270,000
Firewall Policies: 10,000
IPsec VPN Throughput (512 byte): 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels: 50,000
SSL-VPN Throughput: 2.2 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 5,000
SSL Inspection Throughput (IPS, HTTP): 3.5 Gbps
Application Control Throughput (HTTP 64K): 9 Gbps
CAPWAP Throughput (1444 byte, UDP): 10 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of Switches Supported: 64
Maximum Number of FortiAPs (Total / Tunnel): 1024 / 512
Maximum Number of FortiTokens: 1,000
Maximum Number of Registered Endpoints: 2,000
High Availability Configurations: Active-Active, Active-Passive, Clustering
System Performance – Optimal Traffic Mix:
IPS Throughput: 7 Gbps
System Performance – Enterprise Traffic Mix:
IPS Throughput: 4 Gbps
NGFW Throughput: 3.8 Gbps
Threat Protection Throughput: 3 Gbps
Memory Notes
Storage: 120GB SSD Onboard
Ports/Connectors
(2) Hardware Accelerated 10 GE SFP+ Slots
(8) Hardware Accelerated GE SFP Slots
(8) Hardware Accelerated GE RJ45 Ports
(2) GE RJ-45 Management
(3) USB (2 server, 1 client)
(1) Console Port
Power Notes
AC Power Supply: 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum): 126 W / 191 W
Current (Maximum): 110V/4A, 220V/2A
Protocols
Networking Protocol: 10 Gigabit Ethernet
Remote Management Protocol: HTTP
Transport Protocol: IPSec, TCP/IP, UDP/IP
