Description

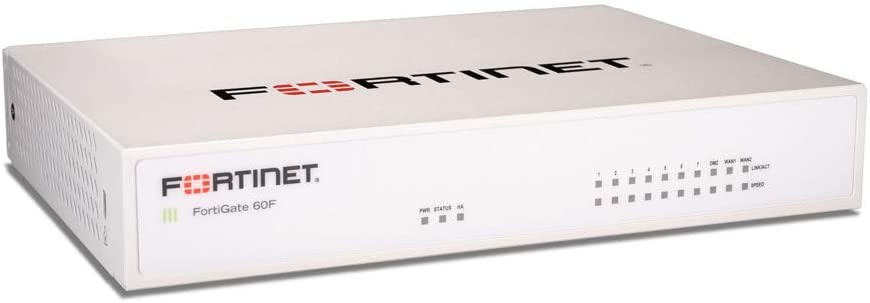

The FortiGate FG-60F-BDL-950-36 series offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.
FortiGate-60F Hardware Plus 3 Year 24×7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Specifications
FG-60F-BDL-950-36
Actual Weight
2.23
General Information
System Performance – Enterprise Traffic Mix:
IPS Throughput: 1.4 Gbps
NGFW Throughput: 1 Gbps
Threat Protection Throughput: 700 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 10/10/6 Gbps
Firewall Latency (64 byte UDP packets): 4 µs
Firewall Throughput (Packets Per Second): 9 Mpps
Concurrent Sessions (TCP): 700,000
New Sessions/Second (TCP): 35,000
Firewall Policies: 5,000
IPsec VPN Throughput (512 byte): 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) :200
SSL Inspection Throughput (IPS, avg. HTTPS): 750 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 400
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 55,000
Application Control Throughput (HTTP 64K): 1.8 Gbps
CAPWAP Throughput (HTTP 64K): 8 Gbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of FortiSwitches Supported: 16
Maximum Number of FortiAPs (Total / Tunnel Mode): 30 / 10
Maximum Number of FortiTokens: 500
High Availability Configurations: Active / Active, Active / Passive, Clustering
Ports/Connectors
(7) GE RJ45 Internal
(2) GE RJ45 WAN
(2) GE RJ45 FortiLink
(1) GE DMZ
(1) USB
(1) Console RJ45
Power Notes
Input: 12Vdc, 3A (powered by an External DC Power Adapter, 100-240V AC, 50/60Hz)
Maximum Current: 115V AC / 0.2A, 230V AC / 0.1A
Power Consumption (Average / Maximum): 17.2W / 18.7W
Protocols
Networking Protocol: Gigabit Ethernet
Transport Protocol: IPSec
