Description

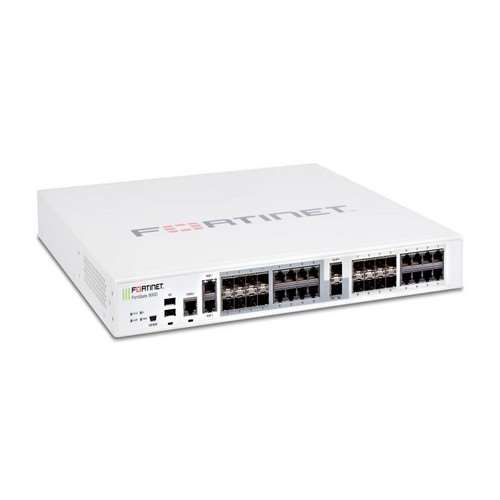

The FortiGate FG-900D delivers next Generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or data center edge. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.
2x 10GE SFP+ Slots, 16x GE SFP Slots, 16x GE RJ45 Ports, 2x GE RJ45management Ports, SPU NP6 and CP8 Hardware Accelerated, 1x 256 GB SSD Onboard Storage, Dual AC Power Supplies
Specifications
FG-900D
Device Type
Security appliance
Height (Rack Units)
1U
Width
17.2 in
Depth
18.2 in
Height
1.7 in
Weight
20.24 lbs
Processors Installed
Fortinet FortiASIC CP8
Hard Drive
SSD 256 GB x 1
Form Factor
External
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol
IPSec
Remote Management Protocol
HTTP, CLI
Performance
Firewall throughput (1518-byte UDP): 52 Gbps | Firewall throughput (512-byte UDP): 52 Gbps | Firewall throughput (64-byte UDP): 33 Gbps | VPN throughput (512-bit IPSec): 25 Gbps | VPN throughput (SSL): 3.6 Gbps | Firewall latency (64-byte UDP): 3 µs | Firewall throughput: 49.5 Mpps | IPS throughput: 8 Gbps
Capacity
Concurrent sessions: 11000000 | New sessions per second: 240000 | Firewall policies: 100000 | Gateway to gateway IPSec VPN Tunnels: 2000 | Client to gateway IPSec VPN tunnels: 50000 | Concurrent SSL VPN users: 10000 | Virtual domains: 10 | Number of FortiAP devices: 512 | Number of FortiToken devices: 1000 | Number of FortiClient devices: 2000
Status Indicators
Power, status, alarm
Features
Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, anti-spam protection, anti-malware protection, built-in hardware bypass
Encryption Algorithm
SSL
