Description

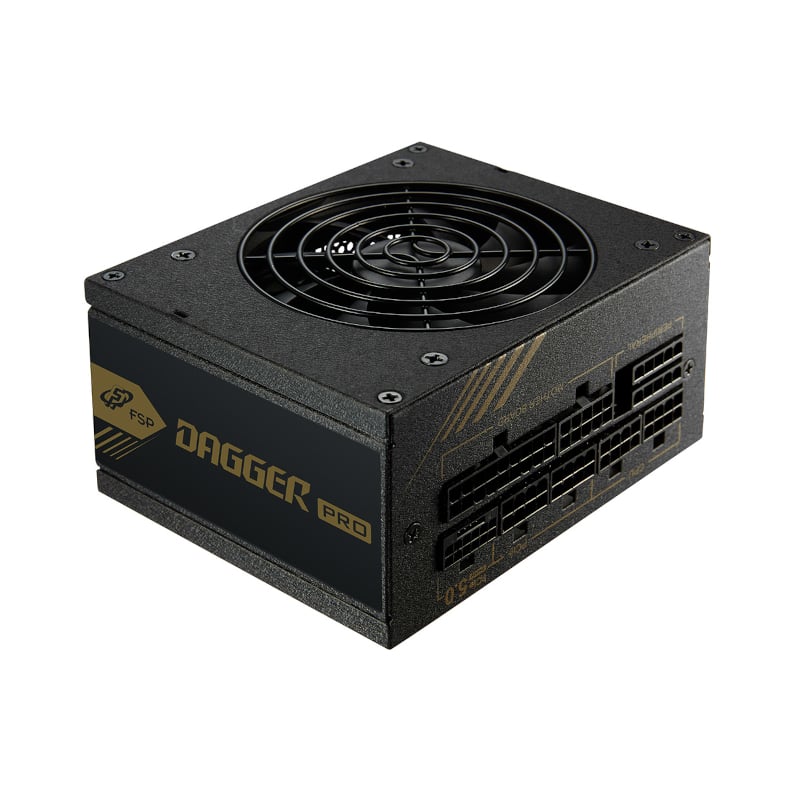

The DAGGER PRO 850W is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% the load of the PSU-rated power and as a result, reduces lots of electricity costs. The Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
The DAGGER PRO 850W comes with a native PCIe 5.0 connector for the latest graphic card and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts. The VGA card is a component which needs greedy and stable power support most. The compact-sized DAGGER PRO ATX3.0 850W comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
It is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is ideal for home computer rigs but a great alternative for mini-PC enthusiasts. It Adapts to your individual requirements, not only does it fit into cases with the SFX form factor but can also be installed in a simple step into normal ATX, Micro-ATX or Mini-ITX cases.
FEATURES:
- Compliance with ATX12V V3.0
- Compliance with PCIe 5.0
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chipset inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- Ribbon cables for the need of enthusiasts
- Powerful single +12V rail design
- Intel’s Latest CPU ready
- Japanese electrolytic capacitors
- Full protections with OCP, OVP, SCP, OPP, OTP
SPECIFICATIONS:
- Rated Output Power: 850W
- Form Factor: SFX
- 80 PLUS Certification: Gold
- Input Voltage: 100-240V
- Input Current: 12-6A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: 90%
- Fan Type: ball bearing fan,92mm
- Operation Temp: 200,000 Hrs
- Protection: OCP, OVP, SCP, OPP, OTP
- AC Input: 100-240Vac~ 12-6A 50-60Hz
- DC Output: +3.3V(20A), +5V(20A), +12V(70.83A), -12V(0.3A), +5Vsb(2.5A)
- Connectors:
- ATX 20+4 x1
- 4+4 PIN x2
- PCIe 6+2 x4
- 12VHPWR x1
- SATA x6
- Molex (peripheral) x2
- Product Dimensions: 12.5 × 10 × 6.4 cm
WHAT’S IN THE BOX:
- FSP DAGGER PRO 850W Modular PSU x1
- Modular Cables Set x1
