Description

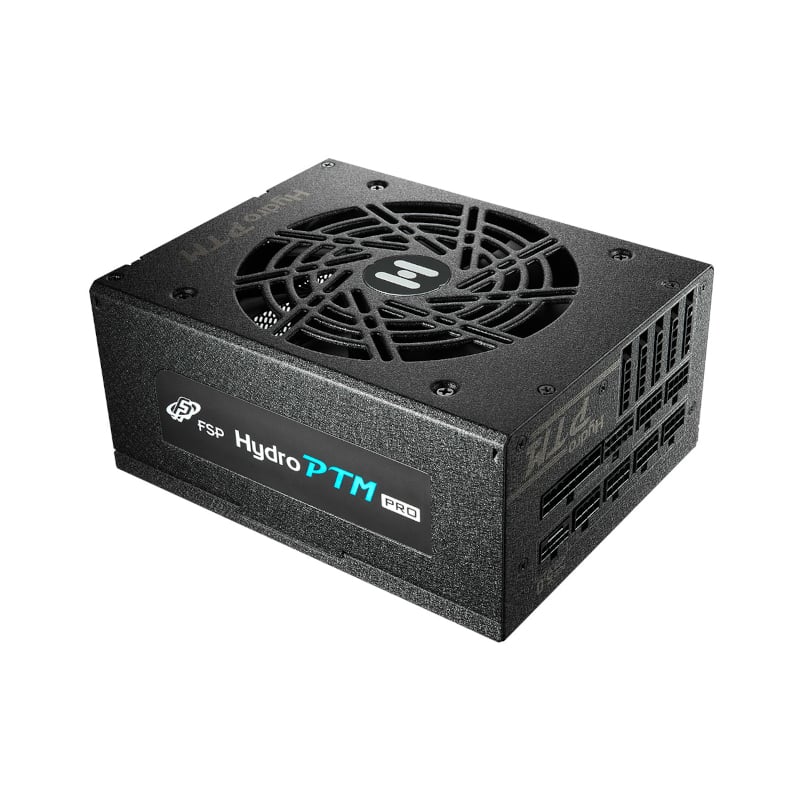

Get high power density with the FSP Hydro PTM X PRO 1200W. Compared to the general high efficiency & high wattage PSU’S 190mm length, the Hydro PTM X PRO series delivers over 1200W with a shorter size of 130mm. Equipped with an ECO switch, under 30% load, you will enjoy a 0 dBA experience when the eco semi-fanless fan control switch is on.
Enjoy a cool experience with its Exclusive Conformal Coating that protects it from dust, stains, and humidity and guarantees to offer better and more reliable performance in harsh environments. The HYDRO PTM X PRO series offers VGA cards full & stable power individually. It uses 450V Japanese bulk Capacitors to ensure a longer lifetime and more stability.
The PTM X PRO has a fully modular design not just for easier installation, but also gives your system a neat and tidy look. With stylish and changeable side stickers that come included for DIY enthusiasts and gamers alike.
FEATURES:
- Complies with ATX12V V3.0 & EPS12V V2.92
- Efficiency ≧ 92% @ typical load
- Active PFC ≧9
- 450V, 105°C Japanese bulk capacitors
- Japanese electrolytic capacitors
- Industrial-grade design with conformal coating application
- +12V single-rail design
- +5V & 3.3V DC to DC module design
- Eco semi-fanless fan control switch
- 120mm fluid dynamic bearing (FDB) fan
- Fully modular cabling design
- Black flat cables
- Changeable side stickers for DIY enthusiasts and gamers
- Complete protection: OCP/OVP/OPP/SCP/OTP
SPECIFICATIONS:
- Rated Output Power: 1200W
- Form Factor: ATX
- 80 PLUS Certification: Platinum
- Input Voltage: 100-240V/200-240V
- Input Current: 14-9A; 9A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: 92%
- Connectors:
- ATX 24(1)
- 4+4 PIN (2)
- 12VHPWR(1)
- PCI-E 6+2(4)
- SATA (12)
- Molex (PERIPHERAL) (3)
- Floppy (1)
- DC Output/Max Output Current/Max Combined Power:
- +3.3V/20A/120W
- +5V/20A/120W
- +12V/100A/1200W
- -12V/0.3A/18.6W
- +5Vsb/3A/12.5W
- Fan Type: FDB Fan, 120mm
- Operation Temp: 0-50℃
- Protection: OCP, OVP, OPP, SCP, OTP
- Product Dimensions: 13 x 15 x 8.6cm
WHAT’S IN THE BOX:
- Hydro PTM X PRO 1200W Modular PSU x1
- Modular Cables Set x1
