Description

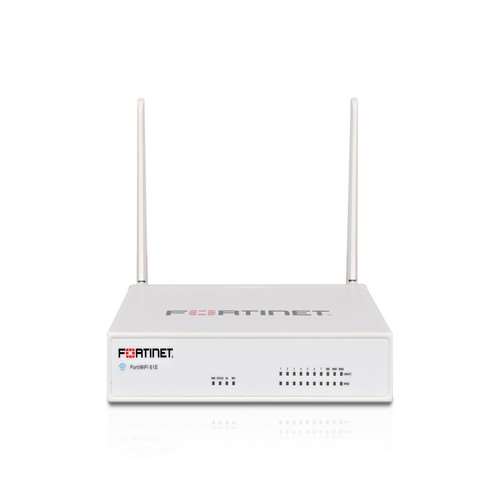

The FortiGate FWF-61E series offers an excellent network security solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.
10x GE RJ45 Ports (Including 7x Internal Ports, 2x WAN Ports, 1x DMZ Port), Wireless (802.11a/b/g/n/ac), 128 GB SSD Onboard Storage. Maximum Managed FortiAPs (Total / Tunnel) 30/10
Specifications
FWF-61E
Actual Weight
1.9
Connectivity
# Ports: 10
Contents
Firewall, documentation
General Information
System Performance – Enterprise Traffic Mix:
IPS Throughput: 400 Mbps
NGFW Throughput: 250 Mbps
Threat Protection Throughput: 200 Mbps
System Performance:
Firewall Throughput (1518 / 512 / 64 byte UDP packets): 3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets): 3 µs
Firewall Throughput (Packets Per Second): 4.5 Mpps
Concurrent Sessions (TCP): 1.3 Million
New Sessions/Second (TCP): 30,000
Firewall Policies: 5,000
IPsec VPN Throughput (512 byte): 2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 100
SSL Inspection Throughput (IPS, avg. HTTPS): 135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 135
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 75,000
Application Control Throughput (HTTP 64K): 650 Mbps
CAPWAP Throughput (HTTP 64K): 890 Mbps
Virtual Domains (Default / Maximum): 10 / 10
Maximum Number of Switches Supported: 8
Maximum Number of FortiAPs (Total / Tunnel Mode): 30 / 10
Maximum Number of FortiTokens: 100
Maximum Number of Registered FortiClients: 200
High Availability Configurations: Active / Active, Active / Passive, Clustering
Memory Notes
Internal Storage: 1x128GB SSD
Ports/Connectors
(2) GE RJ45 WAN
(1) GE RJ45 DMZ
(7) GE RJ45 Internal
(1) USB
(1) Console RJ45
Power Notes
Power Required: 100–240V AC, 50–60 Hz
Maximum Current: 115V AC / 0.9A, 230V AC / 0.6A
Power Consumption (Average / Maximum): 13 / 16 W
Protocols
Networking Protocol: Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management Protocol: HTTP
Switching Protocol: Ethernet
Transport Protocol: IPSec
