Description

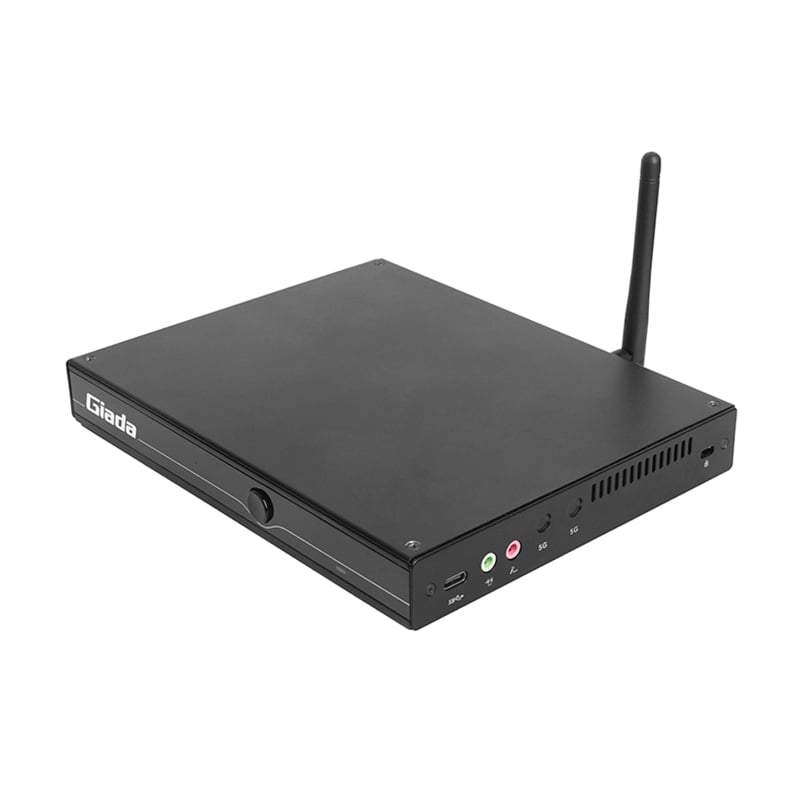

The Giada D611 Core-i3 High-end Digital Signage Player is a high-performance signage player that supports a 4K display. Its Intel Core i3-1115G4 processor offers great performance to the mini PC and allows for it to push even further when required. This signage player runs on Intel® 11th UHD Graphics and has two HDMI outputs and one DisplayPort, these ports can be used simultaneously at up to 4K or the DisplayPort can be used at up to 8K resolution, all at 60Hz. It supports DDR4 memory up to 32GB running at 3200MHz to get a good performance boost.
It can be used in many different scenarios from POS, to signage displays to the office, and because of its compact size, if used in an office environment, makes it easy to mount behind a monitor if needed to save up on desk space.
FEATURES:
- High-speed Intel CPU
- 1 x DP, 2 x HDMI, Supporting 8K Display
- 2 x SO-DIMM DDR4 Memory, Up to 32GB
- 1 x M-key M.2 (2242/2280) for SSD
- Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access
- Compact size that’s easy to mount
SPECIFICATIONS:
- Processor:
- CPU: Intel®Core™ i3-1115G4
- BIOS: AMI Source Code
- Chipset: SOC
- Memory:
- Type: DDR4-3200MHz
- Socket: 2 x SO-DIMM
- Max Size: 32GB
- Graphics:
- GPU: Intel® 11th UHD Graphics
- Graphic Engine: DirectX 12, OpenGL 4.5, OpenCL 2.2 8K60 12b 4:2:0 HEVC/VP9/SCC
- DP: 1 x DP (Max.7680 x 4320 @60Hz)
- HDMI: 1 x HDMI (Max.4096×2304 @60Hz)
- HDMI: 1 x HDMI (Max.4096×2304 @60Hz)
- Network:
- Controller: Realtek 8111G Gigabit Ethernet
- Interface: 1 x RJ45
- Storage:
- M.2: 1 x M-key M.2 (2242/2280) for NVMe
- I/O:
- USB: 1 x USB3.2 Gen2, 2 x USB2.0
- USB Type-C: 1 x USB Type-C3.2 Gen2
- Serial Port: 1 x RS232
- Audio: 1 x AUDIO-OUT, 1 x MIC-IN
- Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
- Wireless:
- 1 x E-key M.2 (2230) for WiFi/BT
- 1 x B-key M.2 (3052) for 3G/4G/5G
- SIM: 1 x SIM Slot
- TPM: Infineon TPM 2.0
- JAHC Tech:
- WatchDog Timer: 0~255 Second Time Out Support
- Auto Power On: Power Activated Automatically Start
- Remote Control: By IR Controller for Power On
- Operation System:
- Windows: Windows 10 IoT Core
- Linux: Support
- Power:
- Power Type: DC-IN
- Input Voltage: 12V / 19V
- Mechanical
- Construction: Metal
- Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
- Colour: Black
- Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT’S IN THE BOX:
- Giada D611 Core-i3 High-end Digital Signage Player – Black x1
- WiFi Antenna x1
- User Manual x1
