Description

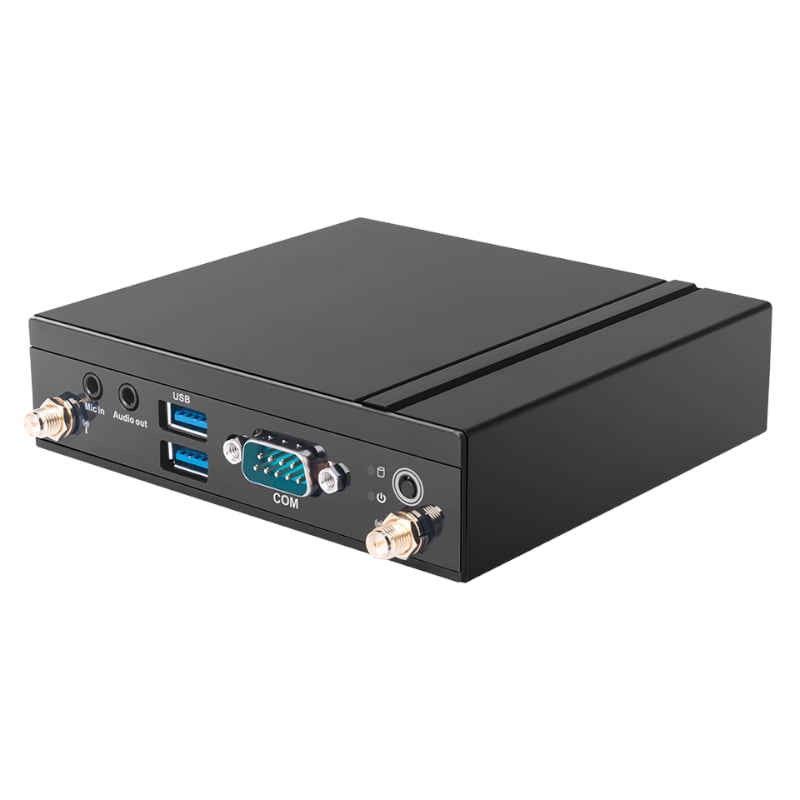

The Apollo Lake Celeron® processors N3350/N3450 (TDP 6W) power the Giada VM23 Fanless ultra-compact player. It is Giada’s most popular model, having the best price-performance ratio. It has internal LPDDR4 memory as well as eMMC5.1 storage. Intel® HD Graphics 500 is used in the player. It has dual 1080p video decoding support. HDMI 1.4a supports resolutions of up to 4096 x 2160@24Hz, whereas DisplayPort 1.2 allows resolutions of up to 4096 x 2160@60Hz. The fanless design, along with a passive thermal cooling system, minimises failure rates while keeping the device noise-free and dustproof. It makes this Giada® device suitable for use in mission-critical applications.
FEATURES:
- Intel® Celeron® N3350 processor
- 1 x HDMI, Supporting 4K Display
- Onboard LPDDR4 2GB
- Realtek RTL 8111H Gigabit Ethernet
- 1 x E-Key M.2 (2230) for WiFi/BT
- Long life cycle
SPECIFICATIONS:
- Processor:
- CPU: Intel® Celeron® N3350 processor
- Frequency: 2.40 GHz
- Chipset: SoC
- Processing Units: 2 Cores
- Memory:
- Type: Onboard LPDDR4-2133 MHz
- Size: 2GB
- Storage:
- Socket: 1 x Full-size Mini-PCIe for MSATA
- Onboard: 32 GB/64 GB, Onboard eMMC
- Graphics:
- GPU: Intel® HD Graphics 500
- Graphic Engine: DirectX 12, OpenGL 4.3, OpenCL 2.0
- DisplayPort: 1 x DP (Max.4096 x 2304 @60 Hz)
- HDMI: 1 x HDMI (Max.3840 x 2160 @30 Hz)
- Network:
- Controller: Realtek RTL 8111H Gigabit Ethernet
- Interface: 1 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT
- I/O:
- USB: 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port: 1 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Antenna: 1 x Connector for Wi-Fi/BT
- Button: 1 x Power on, 1 x CLR-CMOS
- System:
- TPM: NA
- Watchdog Timer: Yes
- Auto Power on: Yes
- RTC: Set up independently every day
- Remo on: Yes
- Fanless: Yes
- Operation System:
- Windows: Windows 10 (64Bit), Windows 11 (64bit)
- Linux: Linux Ubuntu (64bit)
- Power:
- Power Type: DC-IN
- Input Voltage: 12 V/2 A
- Environment:
- Operating Temperature: 0°C ~45°C (32°F~104°F) @0.7m/s Air Flow
- Relative Humidity: 95% @ 40°C (non-condensing)
- Certification: CE, FCC Class B
- Construction: Metal
- Colour: Black
- Dimensions: 11.6 x 10.7 x 3 cm
WHAT’S IN THE BOX:
- Giada VM23 Intel Celeron Fanless Player – Black x1
- WiFi Antenna x1
- AC Power Adapter x1
- Power Cable x1
- User Manual x1
