Description

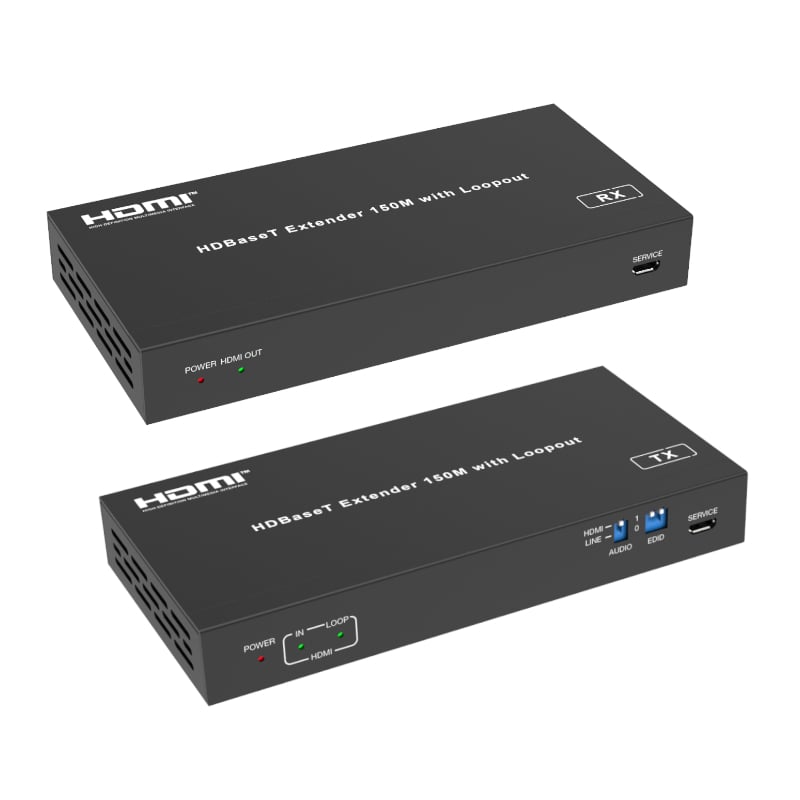

The HDCVT HDBaseT 150M 1080p Extender with Audio Embedment and dis-embedment is capable of extending HDMI signals from signal sources to display devices via CAT 5e/6 cables with a distance of up to 150m/492ft and a video resolution of up to 1080p@60Hz YUV4:4:4. It supports directional IR control, RS-232 control, EDID management, audio embedment(TX) and audio dis-embedment(RX). The transmitter supports the HDMI signal loop out. Equipped with a powerful chip, the extender can deliver a stable working connection for 24-hours continuously with low power consumption. It is easy to use, plug and play, which is widely applied in scenarios such as a video conference, an out-doors big-screen demonstration, and a home theatre.
FEATURES:
- HDMI 1.3 and HDCP 1.4 compliant
- Video resolution is up to 1080p@60Hz
- The transmission distance via a single CAT 5e/6 cable is up to 150m/492ft
- Support bi-directional IR control, RS-232 control and EDID management
- Support audio embedment and dis-embedment
- Support bi-directional PoC (Power over Cable) function
- Compact design for easy and flexible installation
SPECIFICATIONS:
- Housing: Metal Enclosure
- Silkscreen Colour: Black
- Power Consumption: 8.4W (Max)
- Power Supply Input: AC100~240V 50/60Hz
- Power Supply Output: DC 24V/1A (Locking connector)
- HDMI Compliance: HDMI 1.3
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 6.75Gbps
- Video Resolution: 480i~1080p@50/60Hz, Up to 1200p@60Hz
- Colour Depth: 8-bit (1080p60Hz)
- Colour Space: RGB, YCbCr 4:4:4 / 4:2:2
- HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DT:X
- Extension Range: 150m/492ft at 1080p@60
- Transmitter Input: 1x HDMI IN [Type-A 19-pin female], 1x LINE IN [3.5mm Stereo Mini-jack]
- Transmitter Output: 1x HDBT OUT [RJ45 8-pin female], 1x HDMI OUT [Type-A 19-pin female]
- Transmitter Control: 1x AUDIO DIP Switch [1-pin], 1x EDID DIP Switch [2-pin], 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [Phoenix jack], 1x Service [Micro-USB jack]
- Receiver Input: 1x HDBT IN [RJ45 8-pin female]
- Receiver Output: 1x HDMI OUT [Type-A 19-pin female], 1x AUDIO OUT [3.5mm Stereo Mini-jack]
- Receiver Control: 1x RS-232 [Phoenix jack], 1x SERVICE [Micro-USB jack], 1x IR IN [3.5mm Stereo mini-jack], 1x IR OUT [3.5mm Stereo mini-jack]
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
- Product Dimensions TX/RX: 14.6 x 7.1 x 2.1 cm
- Product Weight: 260g
WHAT’S IN THE BOX:
- HDCVT HDBaseT Extender Transmitter x1
- HDCVT HDBaseT Extender Receiver x1
- IR Blaster Cable (1.5 meters) x1
- IR Receiver Cable (1.5 meters) x1
- 3-pin Phoenix Connector x1
- Mounting Ears x4
- Machine Screws (KM3*4) x8
- 24V/1A Locking Power Adapter x1
- User Manual x1
