Description
The HP JG937A 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. Offering enterprise class QoS and security, HP Intelligent Resilient Framework (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10 GbE uplink ports, PoE+, ACLs and delivers energy savings with Energy Efficient Ethernet.

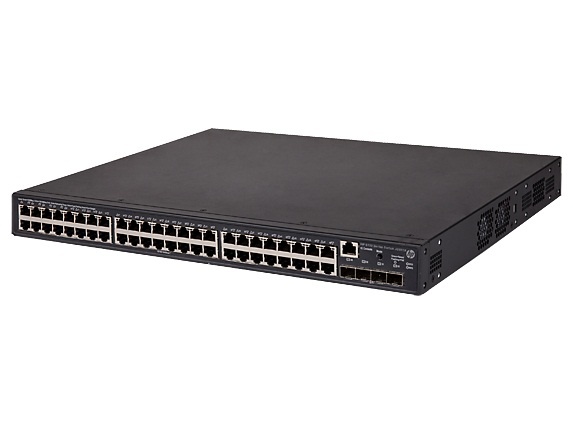

HPE 5130 48G PoE+ 4SFP+ EI Switch
Specifications
JG937A
Ports
(48) RJ-45 autosensing 10/100/1000 ports (4) SFP+ fixed 1000/10000 SFP+ ports
Memory and processor
1 GB SDRAM Packet buffer size: 3 MB 512 MB flash
Latency
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs
Throughput
up to 130.9 Mpps
Routing/switching capacity
176 Gbps
PoE capability
370 W PoE+
Stacking capabilities
IRF 9 switches
Management features
IMC – Intelligent Management Center Command-line interface Web browser SNMP manager
Input voltage
100 – 240 VAC, rated -54 to -57 VDC, rated (depending on power supply chosen)
Operating humidity range
10 to 90% (noncondensing)
Power Consumption
490 W (maximum)
Heat dissipation
160 / 1671 BTU/hr (168.8 / 1762.91 kJ/hr)
Minimum dimensions ( H x W x D)
4.36 x 44 x 36 cm
Weight
8 kg
