Description

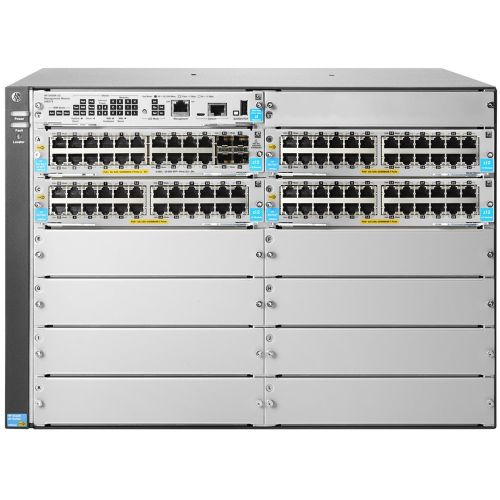

The Aruba JL001A 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi- gigabit ports for high-speed 802.11ac devices. It delivers enterprise-class resiliency with innovative flexibility and scalability for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. This series brings scalable aggregation with Virtual Switching Framework (VSF) stacking technology, hitless failover, and Fast Software Upgrade for 5400R VSF stacks. The advanced Layer 2 and 3 feature set includes OSPF, IPv6, IPv4 BGP, Tunneled Node, robust QoS and policy- based routing with no software licensing required.
Specifications
JL001A
Ports
(92) RJ-45 autosensing 10/100/1000 PoE+ ports (4) open 10GbE SFP+ transceiver slots (8) open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination
Memory and processor
Freescale P2020 dual core @ 1.2 GHz 16 MB flash 1 GB SD Card 4 GB DDR3 SODIMM
Latency
1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs
Throughput
up to 1142.8 Mpps
Routing/switching capacity
1920 Gbps
Switch fabric speed
2030 Gbps
PoE capability
2,760W, depending on power supplies installed
Management features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) SNMP manager Out-of-band management (serial RS-232C or micro USB)
Input voltage
110 – 127 / 200 – 240 VAC, rated
Operating humidity range
15 to 95% @ 113°F (45°C) (noncondensing)
Heat dissipation
4900 BTU/hr (5169.5 kJ/hr)
Minimum dimensions ( H x W x D)
44.45 x 45.09 x 30.73 cm
Weight
20.5 kg
