Description
The Aruba JL003A 5400R zl2 Switch Series is an industry-leading mobile campus access solution with HPE Smart Rate multi- gigabit ports for high-speed 802.11ac devices. It delivers enterprise-class resiliency with innovative flexibility and scalability for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. This series brings scalable aggregation with Virtual Switching Framework (VSF) stacking technology, hitless failover, and Fast Software Upgrade for 5400R VSF stacks. The advanced Layer 2 and 3 feature set includes OSPF, IPv6, IPv4 BGP, Tunneled Node, robust QoS and policy- based routing with no software licensing required.

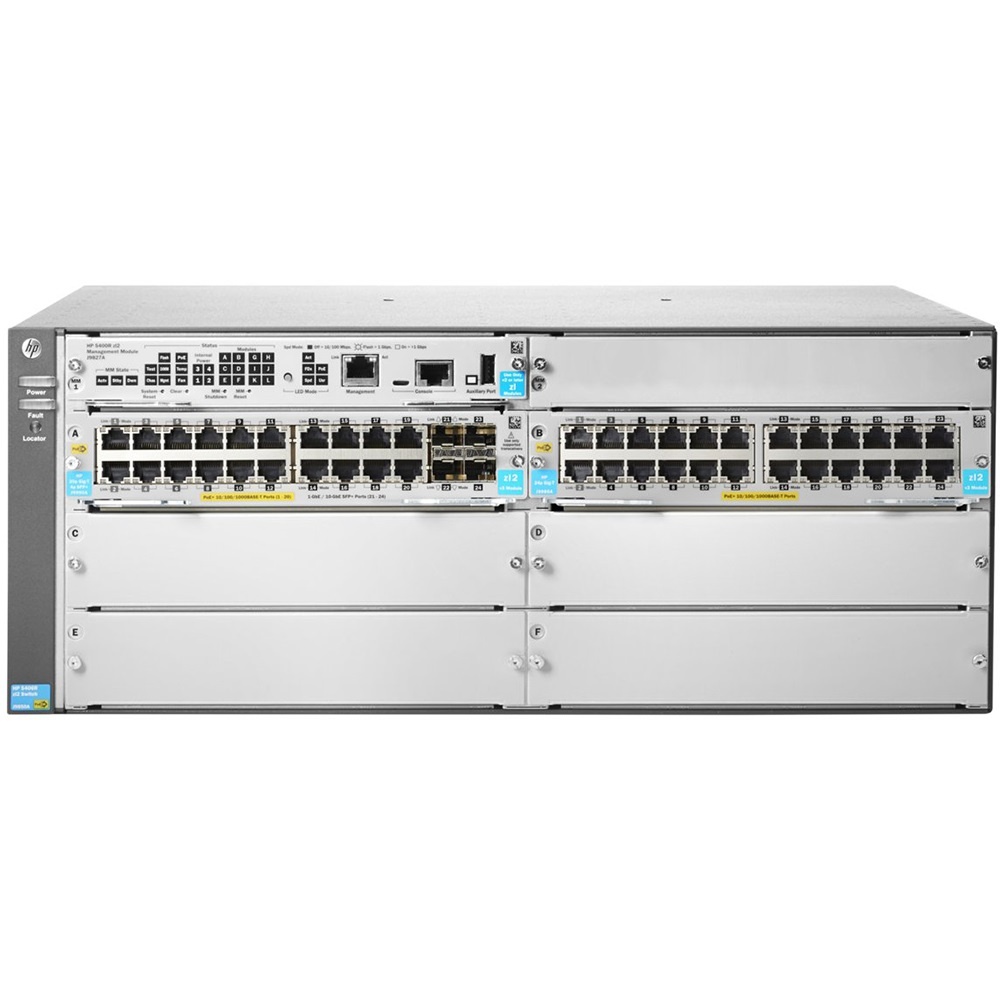

HP 5406R 44GT PoE+ / 4SFP+ v3 zl2 Switch
Specifications
JL003A
Device Type
Switch – 44 ports – Managed
Enclosure Type
Rack-mountable 4U
Subtype
Gigabit Ethernet
Ports
44 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
Performance
Routing/switching capacity: 960 Gbps ¦ Throughput: up to 571.4 Mpps ¦ Switching fabric bandwidth: 1015 Gbps
Capacity
IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size
64K entries
Jumbo Frame Support
Yes
Routing Protocol
RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, CLI, XRMON
Features
Flow control, routing, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), MACsec support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Dimensions (WxDxH)
44.45 cm x 45.09 cm x 17.53 cm
Weight
12.75 kg
