Description
The Aruba JL072A 3810 Switch Series is an industry-leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed IEEE 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. Right-size deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Tunneled node, robust QoS, and policy-based routing are included with no software licensing.

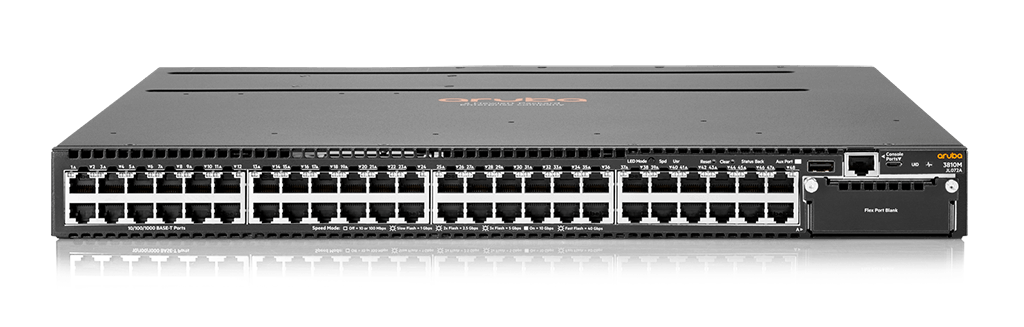

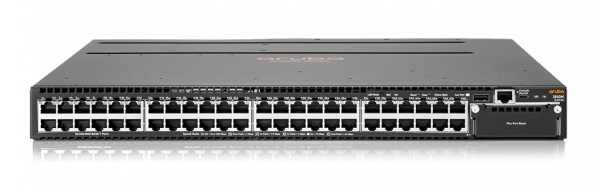

Aruba 3810M 48G 1-slot Switch
Specifications
JL072A
Ports
(48) RJ-45 autosensing 10/100/1000 ports Ports 1 – 48 support MACSec (1) open module slot Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module
Memory and processor
Dual ARM Coretex A9 @ 1 GHz 2 GB DDR3 SDRAM Packet buffer size: 13.5 MB Internal
Latency
1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs
Throughput
up to 190.5 Mpps
Routing/switching capacity
320 Gbps
Switch fabric speed
338 Gbps
Stacking capabilities
Virtual
10 switches
Management features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) In-line and out-of-band Out-of-band management (serial RS-232C or micro USB)
Input voltage
100-240 VAC Depending on installed options, model and configuration
Operating humidity range
15 to 95% @ 104°F (40°C) (noncondensing)
Minimum dimensions ( H x W x D)
44.25 x 43.13 x 4.39 cm
Weight
5.99 kg
