Description
The Aruba JL076A 3810 Switch Series is an industry-leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed IEEE 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. Right-size deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Tunneled node, robust QoS, and policy-based routing are included with no software licensing.

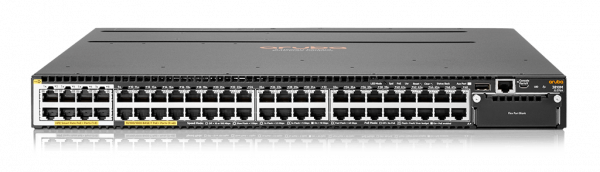

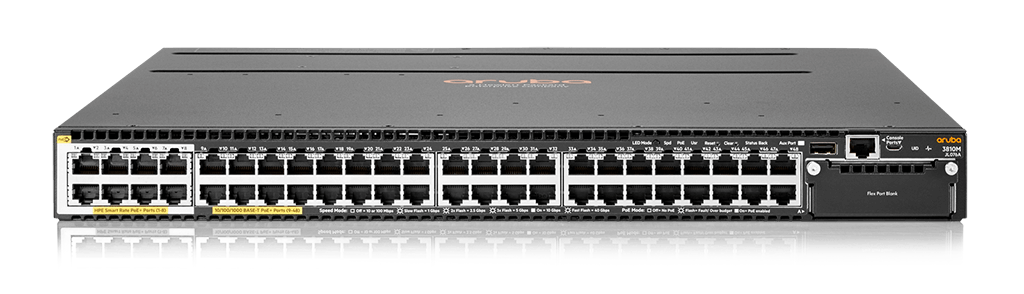

Aruba 3810M 40G 8SR PoE+ 1-slot Switch
Specifications
JL076A
Device Type
Switch – 40 ports – Managed – stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
40 x 1/2.5/5/10GBase-T (UPOE)
Power Over Ethernet (PoE)
PoE+
Performance
Latency (1000Base-T): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Routing/switching capacity: 480 Gbps ¦ Throughput (64-byte packet size):
MAC Address Table Size
64K entries
Routing Protocol
OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON
Features
Flow control, BOOTP support, sFlow, Link Aggregation Control Protocol (LACP), MACsec support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Dimensions (WxDxH)
44.25 cm x 43.13 cm x 4.39 cm
Weight
6.17 kg
