HP 1850 Series
Smart Managed Gigabit entry level switches – With 10Gig copper uplinks

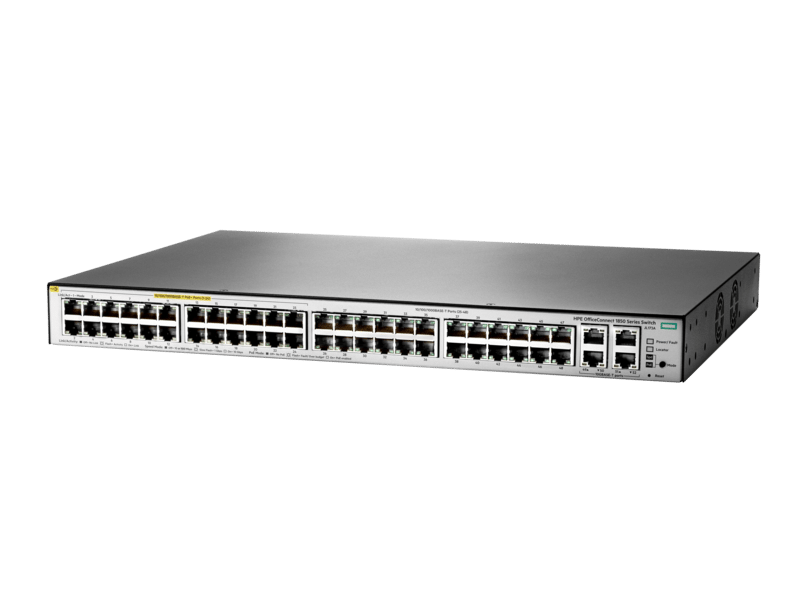

JL173A HPE 1850 48G 4XGT PoE+ 370W Switch
Technical Specifications
Differentiator
- Basic smart web managed 48-port Gigabit PoE+ switch with 10G uplinks.
This model has 48x 10/100/1000 ports and 4x 10GBASE-T ports supporting 10-Gigabit Ethernet over copper cabling. It supports Power over Ethernet (PoE+) on the first 24 Gigabit ports with a power budget of 370 Watts.
Ports
- (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports
(24) RJ-45 auto-negotiating 10/100/1000 ports
(4) RJ-45 1/10GBASE-T ports
Memory and processor
- BCM53346 embedded ARM Cortex-A9 @ 400 MHz
128 MB DDR3 SDRAM
Packet buffer size: 3 MB
Latency
- 100 Mb Latency: < 10 µs
1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 3.8 µs
Throughput
- up to 131 Mpps
Switching capacity
- 176 Gbps
PoE capability
- 370 W PoE+
Management features
- Web browser
Input voltage
- 100 – 127 / 200 – 240 VAC, rated
Power consumption
- 446.4 W (maximum)
Minimum dimensions ( H x W x D)
44.25 x 32.26 x 4.4 cm
Weight
4.67 kg
