Description

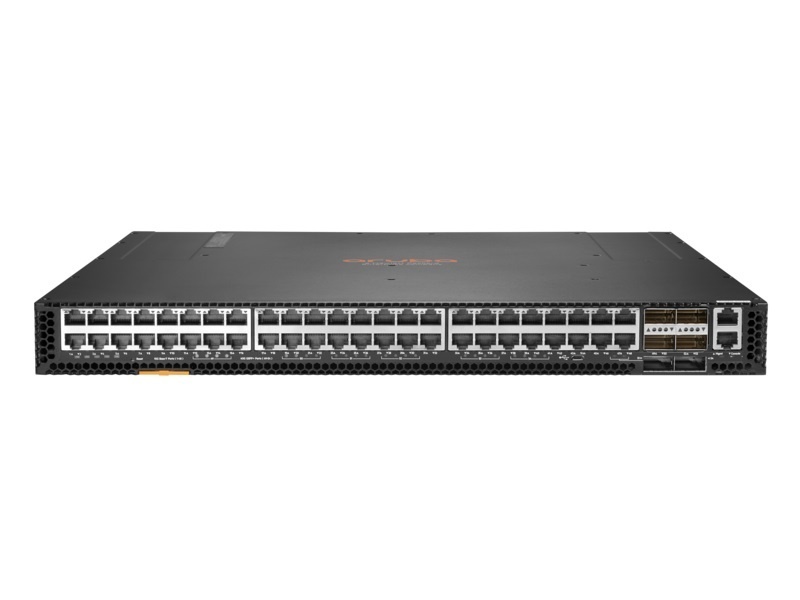

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba 8320 JL581A Switch Series, a campus core and aggregation switch, is a game-changing solution that offers an innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba 8320 is based on ArubaOS-CX, a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. The key innovations in ArubaOS-CX are its micro-services style modular architecture, REST APIs, Python scripting capabilities and the Aruba Network Analytics Engine. The Aruba 8320 Switch Series provides line rate 10GbE and 40GbE in a compact 1U form factor and together with the modular Aruba 8400 Switch, rounds out the Aruba Mobile First switching portfolio with an enterprise core and aggregation solution.
Aruba 8320 48 T/6 40 X472 5 2 Bdl
Specifications
JL581A
Device Type
Switch – 48 ports – L3 – managed – with X472 5 Fans 2 Power Supply
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
48 x 1 Gigabit / 10 Gigabit Ethernet + 6 x 40 Gigabit QSFP+
Performance
Switching capacity: 2.5 Tbps ¦ Forwarding performance: 1.905 Mpps
Capacity
Virtual interfaces (VLANs) per port for 802.1q: 4096
MAC Address Table Size
14K entries
Jumbo Frame Support
9KB
Routing Protocol
OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP
Remote Management Protocol
SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP
Encryption Algorithm
FIPS 140-2
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
VPN support, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Bridge protocol data unit (BPDU), Multi-Chassis Link Aggregation (MLAG), Protocol Independent Multicast (PIM)
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Processor
1: 2 GHz
RAM
16 GB
Flash Memory
8 MB
