Name: P02873-B21 HPE ProLiant DL560 Gen10
SKU: 7147
Price: 172230.90 ZAR
Availability: BackOrder

Description

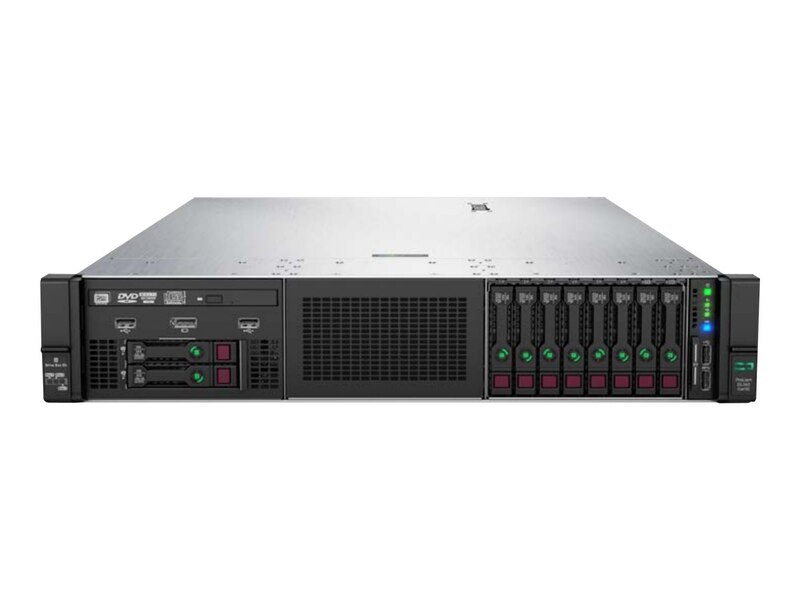

The HPE ProLiant P02873-B21 DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest Intel Xeon Scalable processors, the HPE ProLiant DL560 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to eight PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

HPE ProLiant DL560 Gen10 6230 2.1GHz 20-core 2P 128GB-R P408i-a 8SFF 2x1600W RPS Server8

Specifications

P02873-B21

Memory
Cache Memory (installed): 28 MB
RAM (installed): 128 GB
RAM (max): 1500 GB
RAM Technology: DDR4 SDRAM

Memory Notes
128GB (4x32GB) 2933MHz RDIMM DDR4 SDRAM, upgradable to 1.5TB.
There are twenty-four 288-pin DIMM slots. Four slots are occupied by removable 32GB modules; the rest are open.
Memory maximums:
Registered DIMMs: 768GB
Load-reduced DIMMs: 1.5TB
Video memory:
Integrated Matrox G200eH2 graphics controller with 16MB dedicated video RAM. Connects via VGA.

O/S Notes
There is no operating system pre-installed.
Supported operating systems include:
CentOS
Microsoft Windows Server 2016/2012 R2
VMware vSphere 6.5/6.0 (ESXi)
SuSE Linux Enterprise Server 12 SP2/11 SP4
Red Hat Enterprise Linux 7.3/6.9

Operating System
OS Provided: No Operating System Installed

Optical Drive Information
CD/DVD Type: No Optical Drive

Ports/Connectors
Expansion slots:
(1) PCIe 3.0 x16; 3/4 length/FH
(2) PCIe 3.0 x8; 3/4 length/FH
(2) M.2
(1) microSD card (internal)
Expansion bays:
(8) 2.5″ hot-swap bays
(1) External bay
I/O:
(1) VGA (rear)
(1) Serial (rear)
(1) HP iLO RJ-45
(1) HP iLO Type-A (front)
(2) RJ-45 LAN (10GbE)
(2) USB 2.0 (rear)
(5) USB 3.0 (1 front, 2 rear, 2 internal)
(4) Power in
Storage controller:
HPE Smart Array P408i-a RAID controller, 2GB buffer size, supports RAID levels 0/1/5/6/10/50/60/1 ADM/10 ADM.
Networking controller:
HPE FlexFabric 533FLR-T, Dual-port 10GbE.

Power
# Power Supplies Installed: 2
Power Provided: 3200 watt(s)

Power Notes
(2) 1600W hot-plug power supplies
Nominal voltage: 120 to 230V AC, 50 to 60Hz

Processor
# Processors Installed: 2
# Processors Supported: 4
Chipset Type: Intel C621
Data Bus Speed: 2666 MHz
Number of Cores: 20-core
Processor Features: Intel Turbo Boost Technology
Processor Manufacturer: Intel
Processor Model Number: 6230
Processor Speed: 2.1 GHz
Processor Speed (Boosted): 3.9 GHz
Processor Type: Xeon Gold
Processor Upgradability: Upgradable

Protocols
Networking Protocol: 10 Gigabit Ethernet, Gigabit Ethernet
