Description

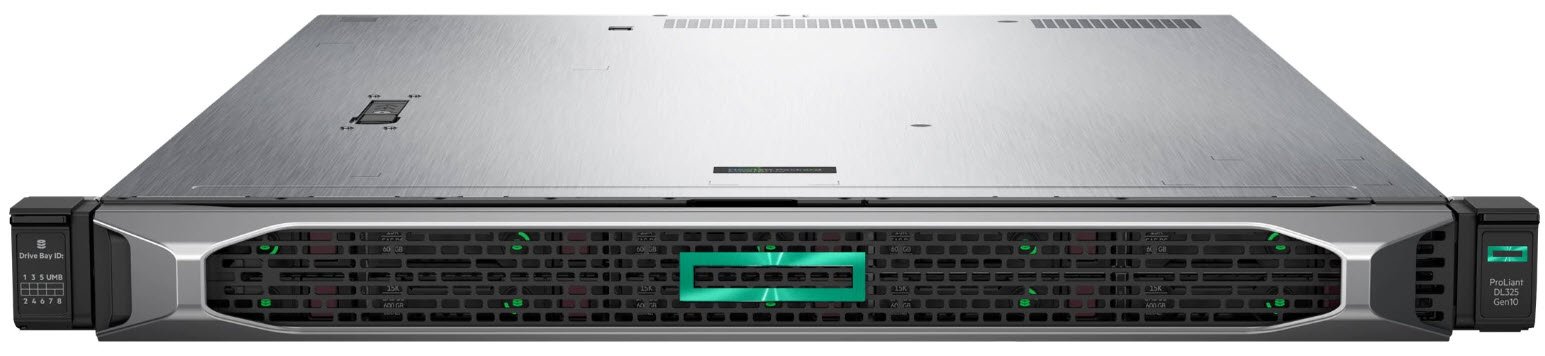

The HPE ProLiant P17199-B21 DL325 Gen10 Server is the secure and versatile single socket server for virtualization and I/O intensive workloads. This server delivers and exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. Get the most out of your virtualized environment with this versatile server.
HPE ProLiant DL325 Gen10 Entry
Specifications
P17199-B21
General
Built-in Devices
Led panel, battery
Hot-Swap Bays Qty
4
Product Form Factor
Rack-mountable – 1U
Server Scalability
1-way
Type
Server
Cache Memory
Cache Per Processor
128 MB
Installed Size
L3 Cache – 128 MB
Card Reader
Supported Flash Memory Cards
microSD
Type
Card reader
Dimensions & Weight
Depth
61.49 cm
Height
4.29 cm
Weight
10.7 kg
Width
43.46 cm
Environmental Parameters
Humidity Range Operating
8 – 90% (non-condensing)
Max Operating Temperature
35 °C
Min Operating Temperature
10 °C
Sound Emission
37 dBA
Environmental Standards
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external ¦ 4 (total) / 4 (free) x hot-swap 3.5″ LFF
Interfaces
1 x HPE iLO – Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear) ¦ 1 x HPE iLO – RJ-45 (1 rear) ¦ 1 x VGA (1 rear)
Slots
1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal)
Graphics Controller
Video Interfaces
VGA
Video Memory
16 MB
Hard Drive
Type
No HDD
