Description
The HPE ProLiant P18605-B21 DL325 Gen10 Server is the secure and versatile single socket server for virtualization and I/O intensive workloads. This server delivers and exceptional balance of processor, memory and I/O for 2P performance at 1P TCO. Get the most out of your virtualized environment with this versatile server.

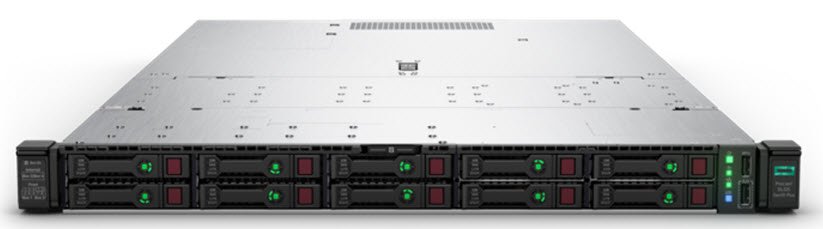

HPE ProLiant DL325 Gen10
Specifications
P18605-B21
General
Chassis Form Factor: 1U Rackmount
Color: Black, Silver
Warranty Information: On-site
Warranty Period: 3 years
Memory
Cache Memory (installed): 128 MB
Memory Rating: PC4-20800
RAM (installed): 64 GB
RAM (max): 1000 GB
RAM Technology: DDR4 SDRAM
Memory Notes
64GB (2x32GB) 2666MHz DDR4 SDRAM, upgradeable to 1TB.
There are sixteen 288-pin DIMM slots. Two slots are occupied by removable 32GB modules; the other slots are open.
Memory maximums:
Load-reduced (PC4-20800): 2TB
Registered (PC4-20800): 1TB
Video memory: integrated GPU with 16MB video RAM. Connects via VGA interface.
O/S Notes
There is no operating system pre-installed.
Supported operating systems:
CentOS
Microsoft Windows Server 2012 R2/2016
SuSE Linux Enterprise Server 12 SP3
ClearOS
Red Hat Enterprise Linux 7.4/7.5
VMware ESXi 6.5 update 2/6.7
Operating System
OS Provided: No Operating System Installed
Optical Drive Information
CD/DVD Type: No Optical Drive
Ports/ConnectorsExpansion slots:
(1) FlexibleLOM, 3/4-length, FH (low-profile)
(1) PCIe 3.0 x16, FH
(1) PCIe 3.0 x8, low-profile
(1) microSD card (internal)
Expansion bays:
(8) 2.5″ hot-swap bays
I/O:
(1) HP iLO Type-A (front)
(5) USB 3.0 (1 front, 2 back, 2 internal)
(4) RJ-45 LAN (GbE, back)
(1) HP iLO RJ-45 (back)
(1) VGA (back)
(2) Power in
Storage controller:
HPE Smart Array P408i-a controller, PCIe 3.0 x8, SATA 6Gbps/SAS 12Gbps, 8-channel, 2GB buffer, supports RAID levels 0/1/5/6/10/50/60/1 ADM/10 ADM.
Power
# Power Supplies Installed: 1
# Power Supplies Supported: 2
Power Provided: 800 watt(s)
Power Notes(1) 800W hot-plug power supply; support for 2 maximum.
1+1 power redundancy with 2nd power supply (sold separately)
Nominal voltage: 120 to 230V AC, 50 to 60Hz
Cooling:
(7) Standard hot-plug fans
Processor
# Processors Installed: 1
# Processors Supported: 1
Data Bus Speed: 3200 MHz
Number of Cores: 24-core
Processor Features: AMD Turbo CORE Technology
Processor Manufacturer: AMD
Processor Model Number: 7402P
Processor Speed: 2.8 GHz
Processor Speed (Boosted): 3.35 GHz
Processor Type: EPYC
Processor Upgradability: Upgradable
Protocols
Networking Protocol: Gigabit Ethernet
