Description
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant P19180-B21 DL360 Gen10 server delivers security, agility and flexibility without compromise.

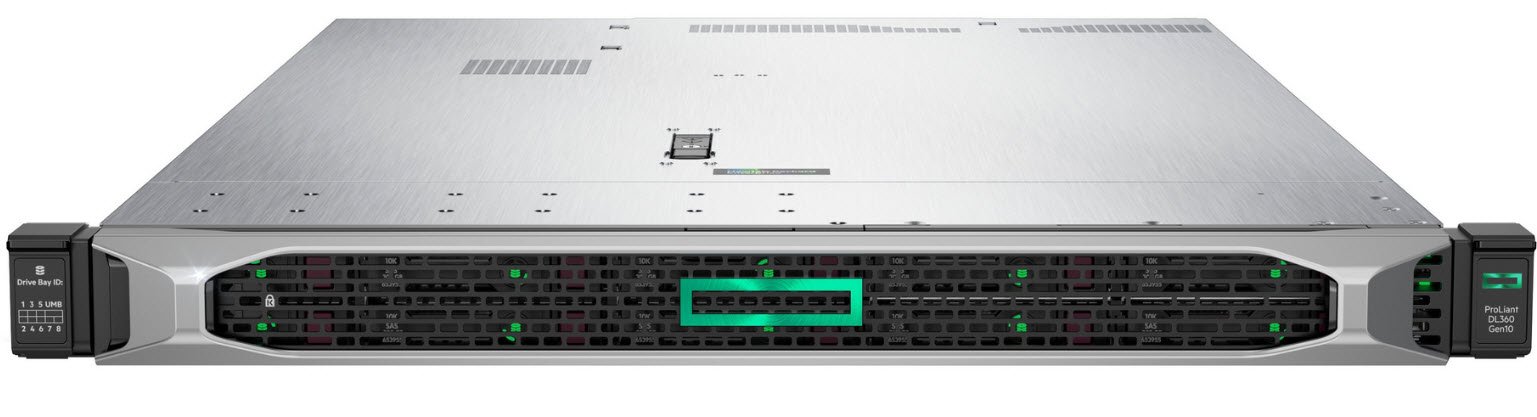

HPE ProLiant DL360 Gen10
Specifications
P19180-B21
Actual Weight
28.75
Compatibility Notes
System management:
HPE iLO 5
Connectivity
# External 2.5″ Bays: 8
Contents
Server, easy install rail kit, 96W smart storage battery, 145mm cable, power supply, documentation
Environmental Standards
ENERGY STAR Qualified: Yes
EPEAT Compliant: Yes
EPEAT Level: EPEAT Bronze
General
Chassis Form Factor: 1U Rackmount
Color: Black, Silver
Warranty Information: On-site
Warranty Period: 3 years
Memory
Cache Memory (installed): 22 MB
RAM (installed): 32 GB
RAM (max): 3000 GB
RAM Technology: DDR4 SDRAM
Memory Notes
32GB (1x32GB) 2933MHz Advanced ECC Registered (RDIMM) DDR4 SDRAM, 3TB maximum.
There are twelve 288-pin DIMM slots. One slot is occupied by a removable 32GB module; the other slots are free.
Memory type:
HP SmartMemory
Memory maximums:
With RDIMMs: 768GB (24x32GB at 2400MHz)
With LRDIMMs: 3TB (24x128GB at 2400MHz)
Memory population guidelines:
Do not mix RDIMMs or LRDIMMs.
A minimum of one DIMM is required per server.
Install DIMMs only if the corresponding processor is installed.
When two processors are installed, balance the DIMMs across the two processors.
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not compatible and will not work with the DL360 Gen10 server.
Video memory:
integrated Matrox G200eH2 memory card with 16MB shared video memory.
O/S Notes
There is no operating system pre-installed. Supported operating systems include:
CentOS
Microsoft Windows Server 2012 R2/2016
VMware vSphere 6.0 (ESXi)/6.5
SuSE Linux Enterprise Server 11 SP4/12 SP2
Red Hat Enterprise Linux 6.9/7.3
ClearOS
Operating System
OS Provided: No Operating System Installed
Optical Drive Information
CD/DVD Type: No Optical Drive
Ports/Connectors
Expansion slots:
(1) FlexibleLOM (full-height, 3/4-length)
(1) PCIe 3.0 x16 (full-height)
(1) PCIe 3.0 x8 (low-profile)
(1) micro SD (internal)
Expansion bays:
(8) 2.5″ hot-plug bays
(1) External bay
I/O:
(1) VGA (rear; additional optional front VGA on select 8SFF and 4LFF models)
(4) RJ-45 LAN (rear)
(1) iLO RJ-45 (rear)
(1) iLO Type-A (front)
(1) Powered USB 3.0 (front)
(4) USB 3.0 (2 rear, 2 internal)
(8) SATA-600/SAS 3.0
(2) Power in
Storage controller:
HPE Smart Array P408i-a/2GB +Smart Storage Battery; 12Gb/s SAS, 6Gb/s SATA, supports RAID 0/1/5/6/10/50/60/1 ADM/10 ADM.
Network controller:
HPE Ethernet 10/25 GbE 2-port 640FLR -SFP28 Adapter
Power
# Power Supplies Installed: 1
Power Provided: 800 watt(s)
Power Notes
Power:
(1) 800W flex slot platinum hot-plug low halogen power supply
Nominal voltage: 120 to 230V AC, 50 to 60Hz
Cooling:
(5) Standard hot plug fans
Processor
# Processors Installed: 1
# Processors Supported: 2
Chipset Type: Intel C621
Data Bus Speed: 2667 MHz
Number of Cores: 16-core
Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2.0
Processor Manufacturer: Intel
Processor Model Number: 6242
Processor Speed: 2.8 GHz
Processor Speed (Boosted): 3.9 GHz
Processor Type: Xeon Gold
Processor Upgradability: Upgradable
