Description

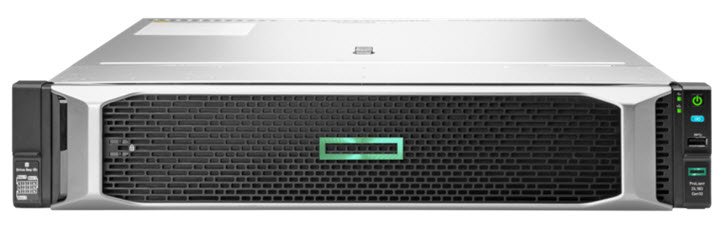

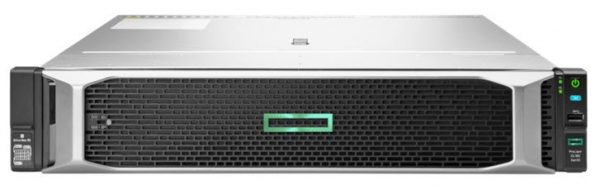

HPE ProLiant DL180 Gen10
Specifications
P19562-B21
Type
Server
Product Form Factor
Rack-mountable – 2U
Server Scalability
2-way
Hot-Swap Bays Qty
8
CPU
Intel Xeon Bronze 3204 / 1.9 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C622
Installed Size
L3 cache – 8.25 MB
Cache Per Processor
8.25 MB
Installed Size
16 GB / 1 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2133 MHz
Rated Memory Speed
2666 MHz
Form Factor
DIMM 288-pin
Slots
16 (total)
Features
Registered, HPE SmartMemory
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA – PCIe 3.0 x4
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software RAID
Channel Qty
14
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 3.5″ LFF
Slots
1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 – half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 – full-height
Interfaces
2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 1 x VGA
