Description
Do you need a platform purpose-built to address your virtualized and memory-centric workloads? Try something EPYC. Hewlett Packard Enterprise is extending the worlds’ most secure industry standard servers to include the HPE ProLiant P26897-B21 DL385 Gen10 Server, utilizing the AMD EPYC 7000 Series processors. This platform has been designed with the security you need and the flexibility you require to accommodate the most demanding enterprise workloads. The HPE ProLiant DL385 Gen10 Server delivers a low cost virtual machine (VM) with unprecedented security.

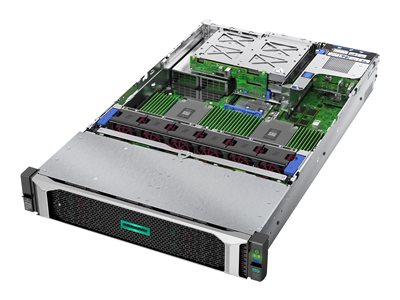

HPE ProLiant DL385 Gen10 7252 3.1GHz 8-core 1P 16GB-R 8SFF 500W PS Server
Specifications
P26897-B21
General
Type
Server
Product Form Factor
Rack-mountable – 2U
Built-in Devices
LED panel, battery
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
AMD EPYC 7252 / 3.1 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Cache Memory
Installed Size
L3 cache – 64 MB
Cache Per Processor
64 MB
RAM
Installed Size
16 GB / 1 TB (max)
Technology
DDR4 SDRAM
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
32 (total) / 31 (empty)
Features
Registered, dual channel memory architecture, HPE SmartMemory, slots 17 – 32 are available in two-processor configuration only
Configuration Features
1 x 16 GB
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID – PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Optical Storage
Type
No optical drive
Card Reader
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HPE 366FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external | 8 (total) / 8 (free) x hot-swap 2.5″ SFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 | 2 (total) / 2 (free) x PCIe 3.0 x8
Interfaces
1 x HPE iLO (service port) | 4 x LAN (Gigabit Ethernet) | 1 x HPE iLO | 1 x VGA
