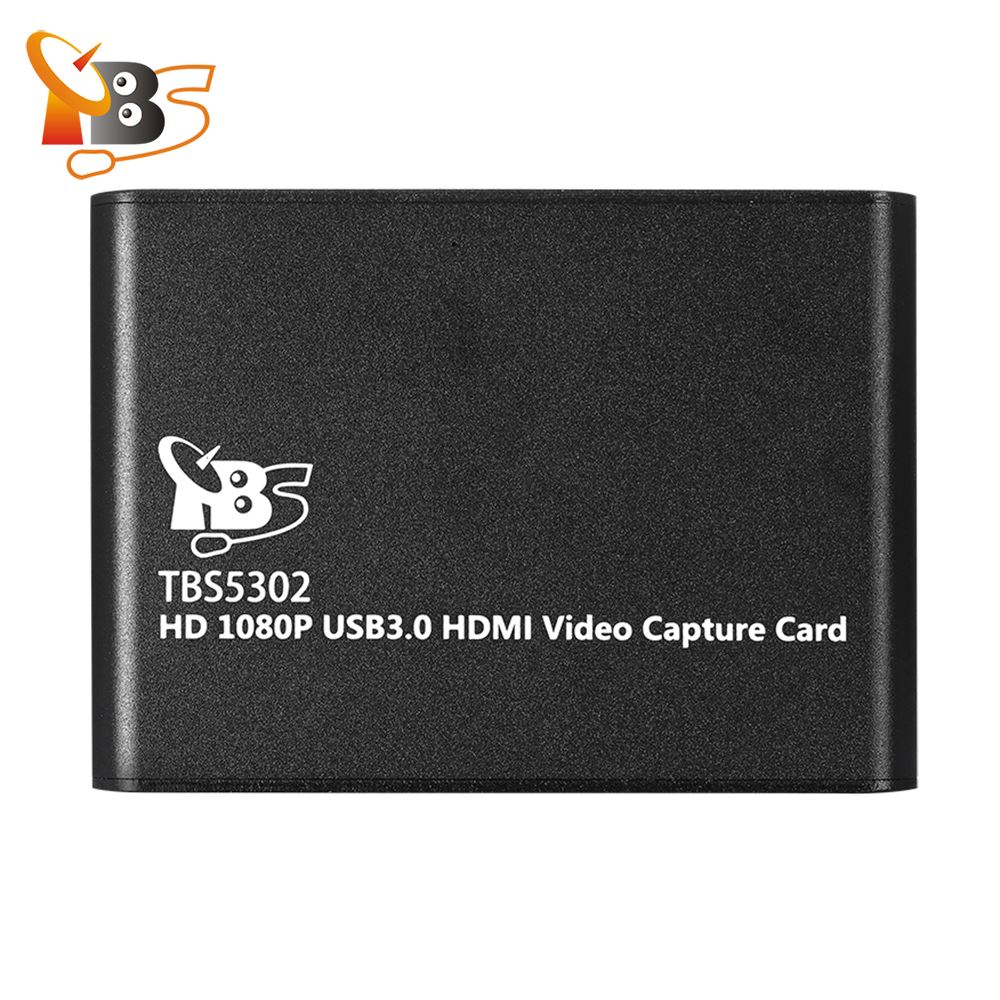

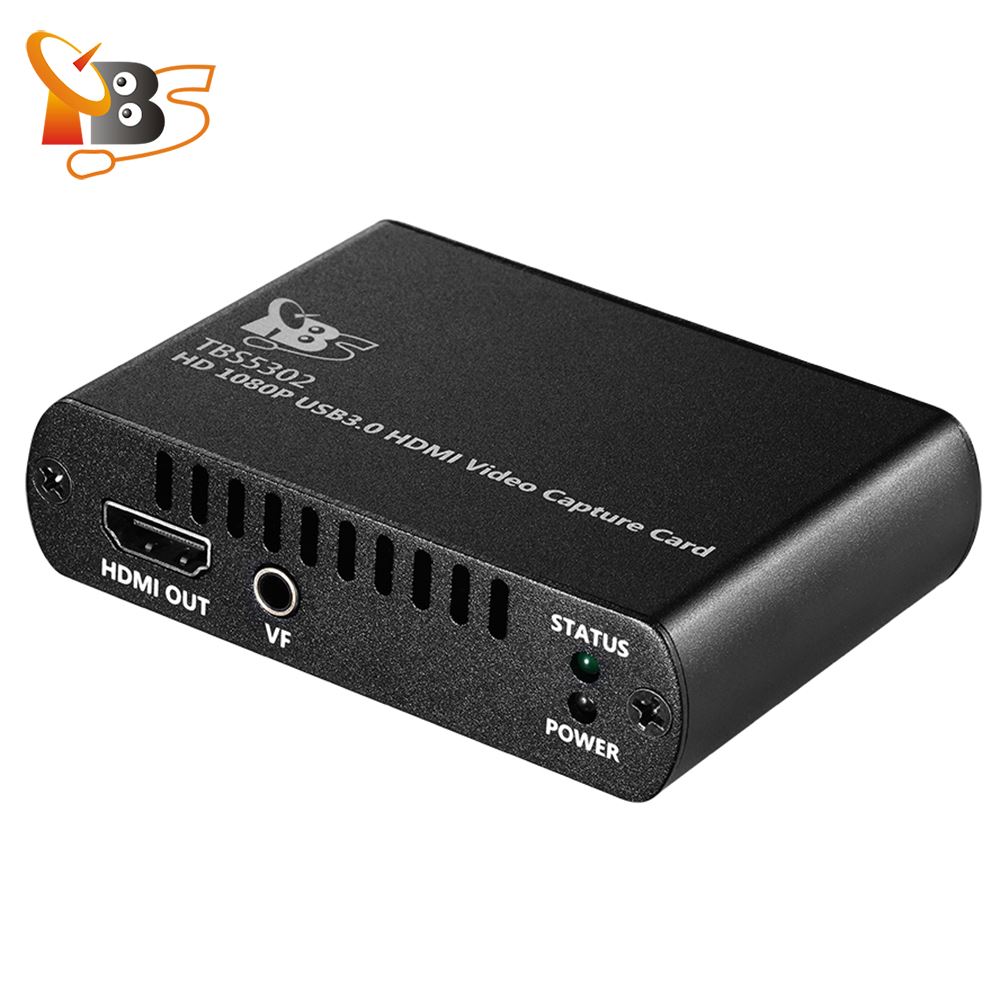

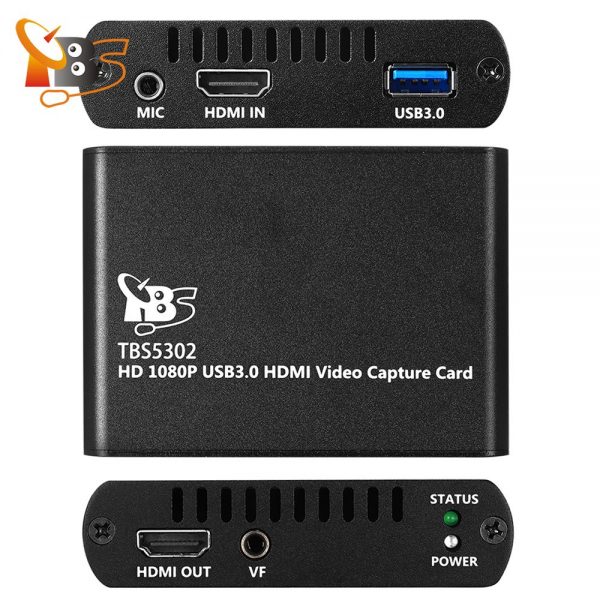

TBS5302 1080P USB3.0 HDMI Video Capture Card Compatible with PS4, PS3, Xbox

R4,150.00

TBS5302 1080P USB3.0 HDMI Video Capture Card Compatible with PS4, PS3, Xbox

SKU: 4000262034556 Category:

Description



TBS5302 1080p USB3.0 HDMI HD Video capture card with HDMI 1.4 portis a device which has a superior performance, superior compatibility, simple installation and many other features. It completely support full HD Video and Audio capture and playback. It not only cancapture one HD 1080P 60FPS input and output signal, but also offers a separate 3.5 mm audio input fr accompanying audio or voice-overs, and a HDMI loop out port for connecting another HDMI device when you are making livstream.

TBS5302 support with Windows 8/10 and compatible with many USB3.0 chipset(Intel , Renesas , ASMedia , FrescoLogic ), PC le Gen1.1 x1 expansion via USB3.0 interface. The HD video capture meets UVC and UAC standard , without having to install drivers and settings , the real Pnp , easy to use.



Record your favorite show and keep the wonderful memories.

tbs5302_desc2

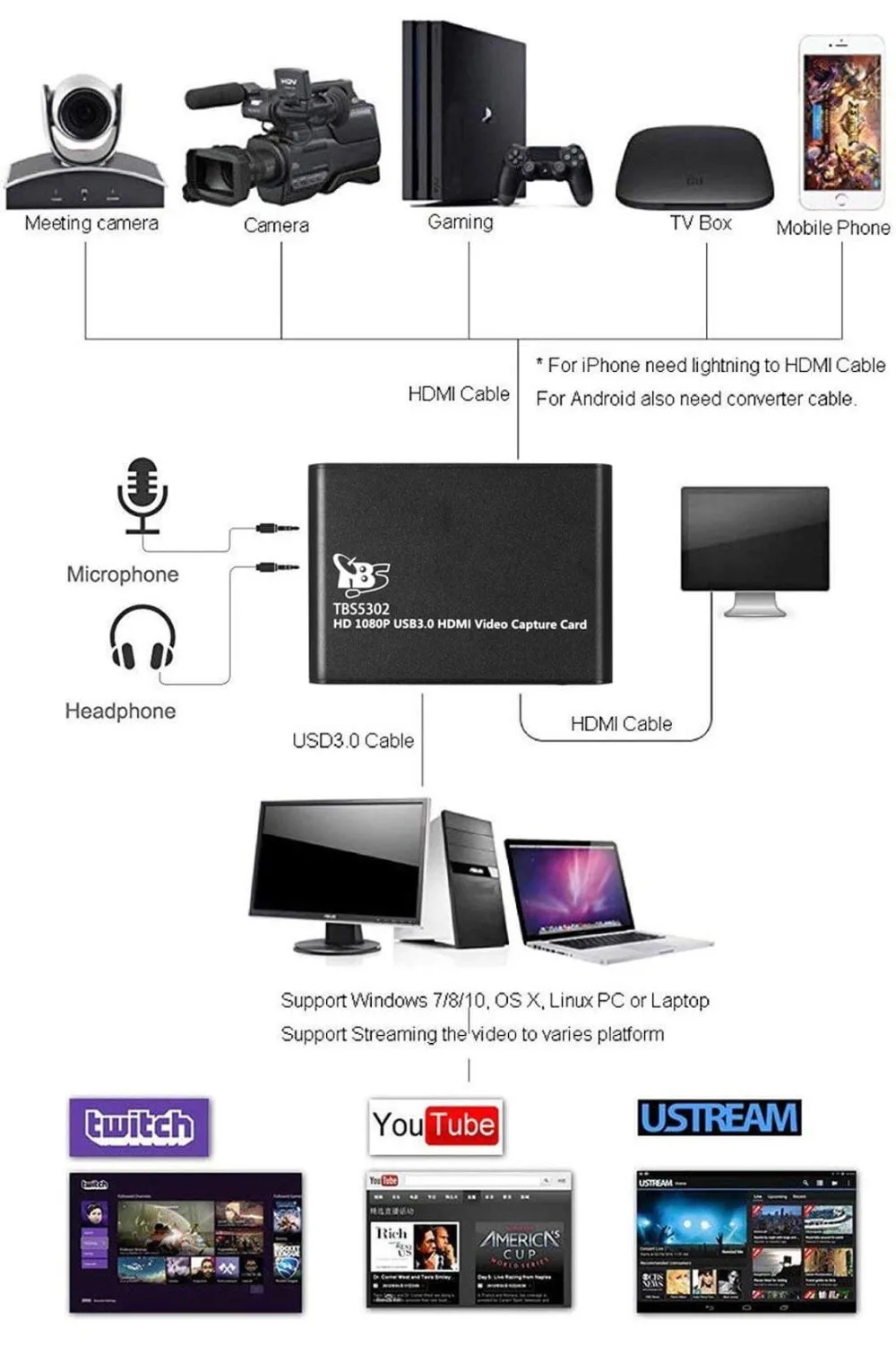

Ideal item for super gamer to record or re-stream the gameplay at the same time.

tbs5302_desc3

Key Features

  1. Compatible with windows 8 and windows 10, no need to install driver, truly PnP.
  2. Compatible with all 1080P 720P hdmi device, such as Wii U, PS4, PS3, Xbox One, Xbox 360, Wii, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc.
  3. The HD video capture card can support HDCP 1080P with 60FPS, it is very suitable to use it for game live streaming.
  4. USB3.0 high speed transmission port,let your live streaming to Twitch, Youtube, OBS, Potplayer and VLC more easily.
  5. 3.5mm embedded audio source
  6. Easy video recording on Windows
  7. Compatible with UVC and UAC

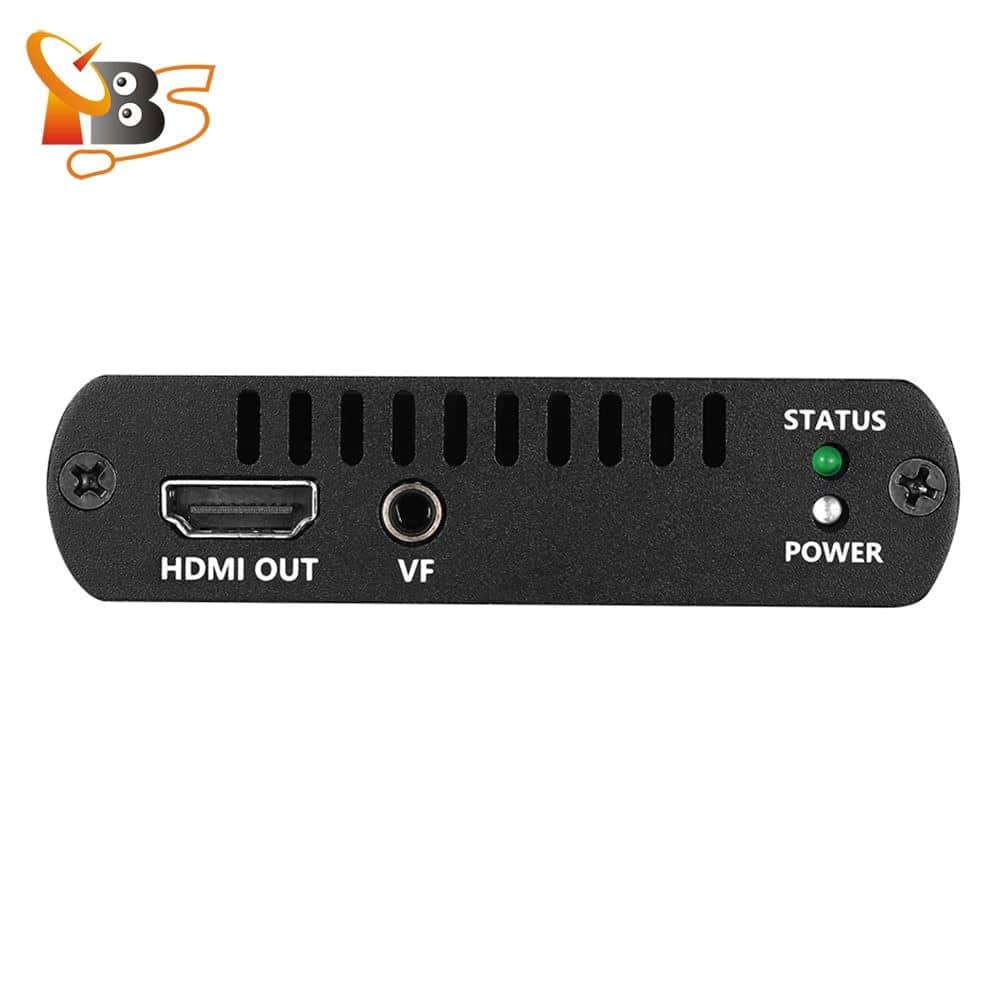

  8. HDMI loop out port for connect with another HDMI device when you are making a live stream

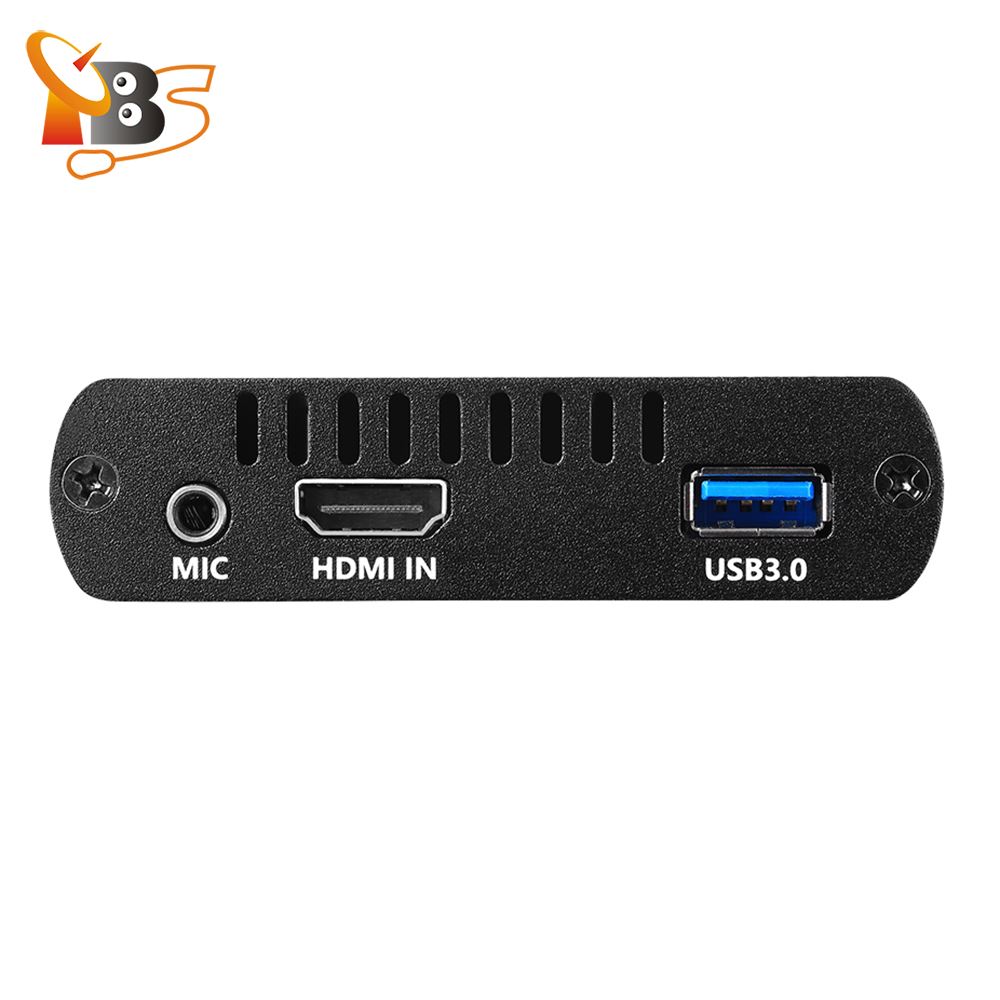

Specification:

Interface USB3.0
Video input HMDI 1.4
Input Resolution 1920x1080_P/I 60hz; 1920x1080_P/I 50hz;1920x1080_P 30hz;1920x1080_P 25hz;
1920x1080_P 24hz; 720_P 60hz; 720P 50hz;576_P/I; 480_P/I
Video Output 1920×1080 60fps
Audio input HDMI embedded
3.5mm microphone
Audio output HDMI loop out
Earphone, loudspeaker
Video Capture Standard of UVC and UAC
Application Windows Media Encoder; Adobe Flash Media Encoder;RealRpoducer Plus;
VLC Media Player; Wire cast; Pot Player; OBS
Software compatible Windows Media Encoder Adobe Flash Media Live Encoder (windows) Real Producer Plus (Windows) VLC (Windows) Quick Time Broadcaster (Windows) Quick Time Player (Windows) Wire Cast (Windows ) Pot Player( Windows)
Size 88*63*22mm
Consumption less than 2.5W
Temperature 0-50℃
Storage temperature -20
Storage humidity 5%-90%
system
OS Windows® 10 / Windows 8.1 / (Windows 7 (SP1)need install driver) Linux (kernel version 2.6.38 and above)
PC Intel® Core i5 -4400 3.10 GHz + NVIDIA® GeForce® GTX or more advanced
Laptop Intel Core i7-4810 OMQ + NVIDIA GeForce GTX 870M or more advanced
RAM 8 GB
Mobile phone Android phone Only support USB2.0, not supports USB3.0 (because Adroid UVC driver not supports USB3.0)



Additional information

Ships From

China

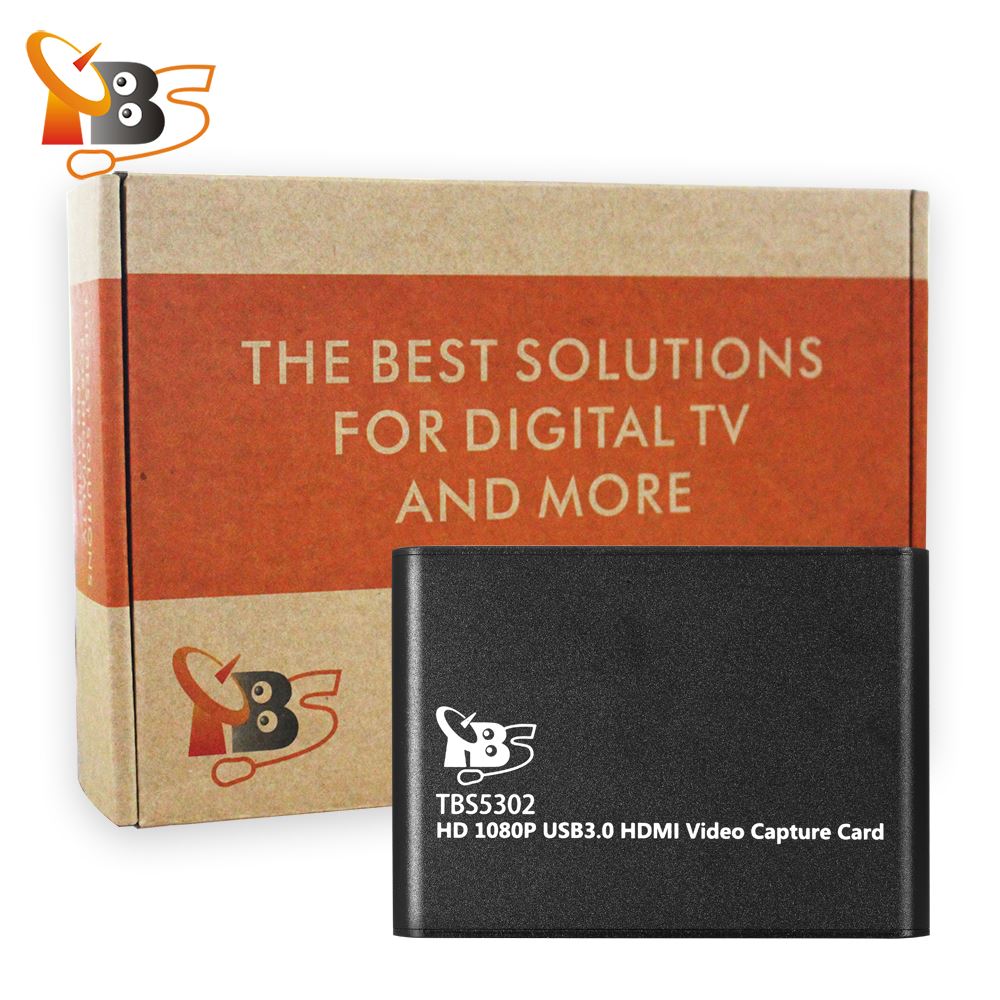

Package

Gift Box

Model Number

TBS5302

Interface

USB3.0

Input

HDMI 1.4

Video Output

1920×1080 60fps

Audio Input

HDMI Embedded audio

OS and Driver

Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux

Warranty

2 Years
