Description
Cisco Catalyst WS-C2960X-24TS-L Series are stackable Gigabit Ethernet Layer 2 and Layer 3 access switches. They’re easy to deploy, manage, and troubleshoot. They offer automated software installation and port configuration. And they help you cut costs with energy-efficient features.

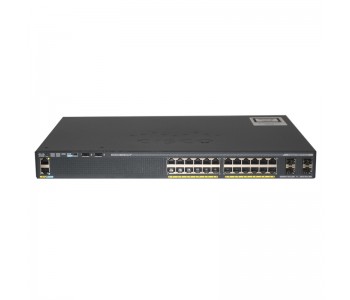

Cisco Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
Specifications
WS-C2960X-24TS-L
Power Rating
0.039 kVA
Feature Set
LAN Base Layer 2
Operating Relative Humidity
10% to 95% noncondensing
Dimensions
17.5 x 11.0 x 1.75 inches (44.5 x 27.9 x 4.5 cm)
Operating Temperature up to 5000 ft (1500 m)
23 to 113 F (-5 to 45 C)
Uplinks
4 SFP
Weight
8.9 lbs (4.0 kg)
Short-term Exception up to 10,000 feet (3000 m)
23 to 113 F (-5 to 45 C)
MTBF
564,910 hours
Acoustic Noise (Typical / Maximum)
42 dB / 46 dB
Forwarding Rate (64-byte Packet)
71.4 Mpps
Short-term Exception up to 13,000 feet (4000 m)
23 to 104 F (-5 to 40 C)
Operating Temperature up to 10,000 ft (3000 m)
23 to 104 F (-5 to 40 C)
Storage Altitude
Up to 13,000 feet (4000 m)
FlexStack-Plus Stacking
Optional
Storage Relative Humidity
10% to 95% noncondensing
Short-term Exception up to 5000 feet (1500 m)
23 to 122 F (-5 to 50 C)
Voltage
100 to 240 VAC, 50 to 60 Hz
Storage Temperature up to 15,000 feet (4573 m)
-13 to 158 F (-25 to 70 C)
Short-term Exception at Sea Level
23 to 131 F (-5 to 55 C)
Operating Altitude
Up to 10,000 feet (3000 m)
10/100/1000 Ethernet Ports
24
Current
1 A – 0.5 A
