Description

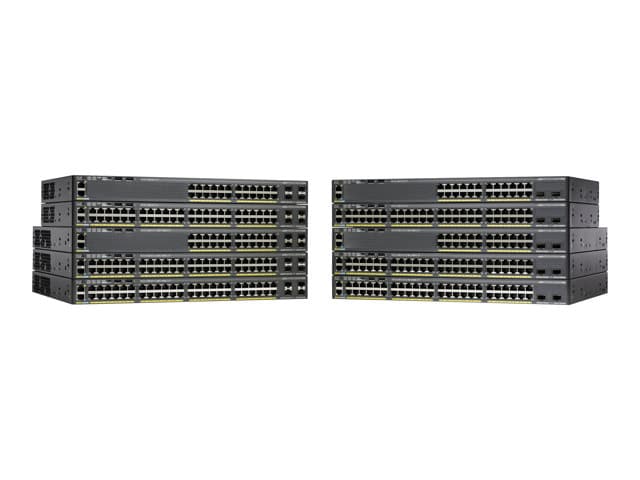

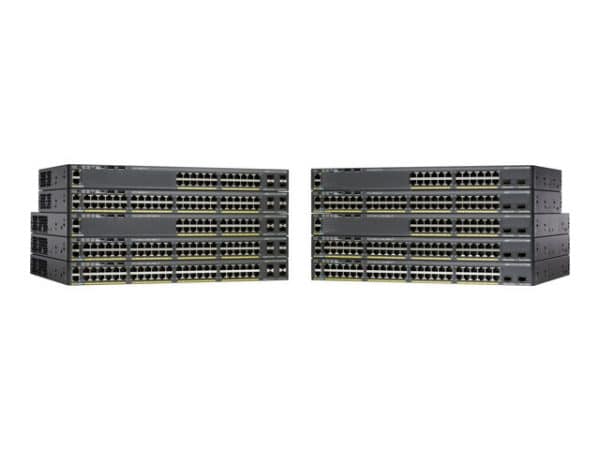

Cisco Catalyst 2960X-48LPS-L – switch – 48 ports – Managed – rack-mountable
Product Overview
- 48 Gigabit Ethernet ports with line-rate forwarding performance
- Gigabit Small Form-Factor Pluggable (SFP) uplinks
- Power over Ethernet Plus (PoE+) support with up to 740 W of PoE budget
- Reduced power consumption and advanced energy management features
- USB and Ethernet management interfaces for simplified operations
- Application visibility and capacity planning with integrated NetFlow-Lite
Technical Specifications
Product Description Cisco Catalyst 2960X-48LPS-L – switch – 48 ports – Managed – rack-mountable
Device Type Switch – 48 ports – Managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 370 W
Performance Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 107.1 Mpps
Capacity Virtual interfaces (VLANs): 1023
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Features Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames su
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 36.8 cm x 4.5 cm
Weight 5.8 kg
Manufacturer Warranty Limited lifetime warranty
