Description
Cisco Catalyst WS-C2960X-48TS-LL Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.
48 Gigabit Ethernet ports with line-rate forwarding performance
Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
24-port PoE fanless switch for deployment outside the wiring closet
Reduced power consumption and advanced energy management features
USB and Ethernet management interfaces for simplified operations
Application visibility and capacity planning with integrated NetFlow-Lite
LAN Lite Cisco IOS® software features

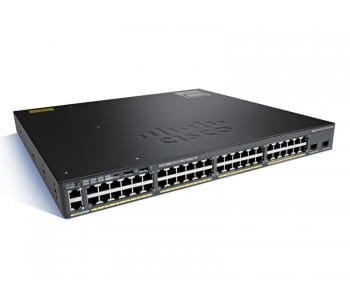

Cisco Catalyst 2960-X 48 GigE, 2 x 1G SFP, LAN Lite
Specifications
WS-C2960X-48TS-LL
MTBF (Hours)
476560
Feature Set
LAN Lite
Power (Voltage – auto-ranging)
100 to 240 VAC
Power (Current)
1A to 0.5A
Power consumption (weighted average)
44.4
Uplinks
2 SFP
Power consumption (10% traffic)
44.3
Dimensions (inches)
1.75 x 11.0 x 17.5
Acoustics: Sound pressure (Typical/maximum)
42 dB / 46 dB
Weight (Kilograms)
4.0
Acoustics: Sound power (Typical/maximum)
5.1 B / 5.5 B
Power consumption (0% traffic)
31.4
Power consumption (100% traffic)
44.5
Power rating (switch maximum consumption)
0.046 kVA
Power (Frequency)
50 to 60 Hz
Flexstack-Plus and Flexstack-Extended Stacking
n/a
Dimensions (metric)
4.5 x 27.9 x 44.5cm
PoE+ Power
n/a
10/100/1000 Ethernet Ports
48
Weight (lbs)
8.9
Forwarding rate: 64-byte Layer 3 packets
104.2 Mpps
