Description

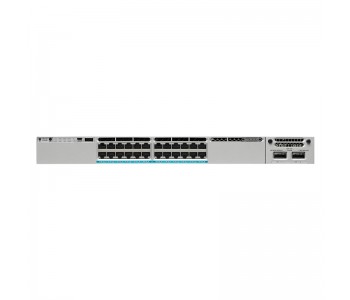

The Cisco WS-C3850-24XU-L Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired plus wireless policy enforcement, application visibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480.
The IP Base feature set provides entry-level enterprise services in addition to all LAN Base features, with 1K VLANs. IP Base also includes the support for wireless controller functionality (mobility agent and mobility controller role; additional access point license required for mobility controller role), routed access, smart operations, FNF, and so on.
Cisco Catalyst 3850 24 mGig Port UPoE LAN Base
Specifications
WS-C3850-24XU-L
Device Type
Switch – 24 ports – managed – stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 1/2.5/5/10GBase-T (UPOE)
Power Over Ethernet (PoE)
UPOE
PoE Budget
580 W
Performance
Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 500 Mbps
Capacity
IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD, URPF, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, NTP
Encryption Algorithm
128-bit AES, 256-bit AES, DTLS
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
ARP support, Intrusion Detection System (IDS), IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Wireless Intrusion Prevention System (WIPS), Class of Service (CoS), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, radio resource management (RRM), IP source guard, Weighted Tail Drop (WTD), Bridge protocol data unit (BPDU), Control plane protection (CoPP), Spanning-tree Root Guard (STRG), RA guard, Energy-Efficient Ethernet (EEE), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), VLAN Trunking Protocol (VTP) v.3, MQC, Audio Video Bridging (AVB), OBFL, Committed Information Rate (CIR), Media Access Control Security (MACsec)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA, IEEE 802.3bz
RAM
4 GB
Flash Memory
2 GB
