Description

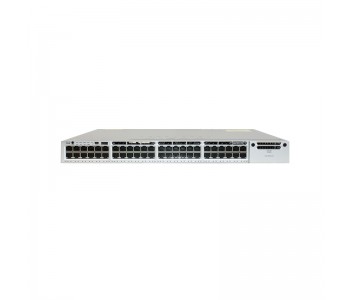

The Cisco WS-C3850-48P-L Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired plus wireless policy enforcement, application visibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480.
The IP Base feature set provides entry-level enterprise services in addition to all LAN Base features, with 1K VLANs. IP Base also includes the support for wireless controller functionality (mobility agent and mobility controller role; additional access point license required for mobility controller role), routed access, smart operations, FNF, and so on.
Cisco Catalyst 3850 48-Port PoE LAN Base
Specifications
WS-C3850-48P-L
Device Type
Switch – 48 ports – managed – stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
435 W
Performance
Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps
Capacity
IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM
4 GB
Flash Memory
2 GB
Status Indicators
Port transmission speed, port duplex mode, system, status, PoE
