WS-C2960X-24TS-L Switch

Here’s a concise overview of the Cisco Catalyst 2960-X Series switch model WS-C2960X-24TS-L:

Overview

The Cisco Catalyst 2960-X Series switches are stackable Gigabit Ethernet switches designed for enterprise-class access in campus and branch networks. They operate on Cisco IOS Software and offer simple device management and network management capabilities.

Key Specifications

Ports: 24 Gigabit Ethernet ports with line-rate forwarding performance.
Uplinks: 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks.
Power over Ethernet (PoE+): Supports PoE+ with a power budget of up to 740W and Perpetual PoE.
Software Options: Available with Cisco IOS LAN Base or LAN Lite, as well as Cisco IOS IP Lite.
Management Options:
- Web UI
- Over-the-air access via Bluetooth
- Command-Line Interface (CLI)
- Simple Network Management Protocol (SNMP)
- RJ-45 or USB console access
Network Management:
- Cisco Prime
- Cisco Network Plug and Play
- Cisco DNA Center
Stacking: Supports FlexStack-Plus and FlexStack-Extended for stacking.
Layer 3 Features:
- Routed access (Open Shortest Path First [OSPF])
- Static routing
- Routing Information Protocol (RIP)
Visibility and Security:
- Domain Name System as an Authoritative Source (DNS-AS)
- Full (Flexible) NetFlow
- 802.1X
- Serial Port Analyzer (SPAN)
- Bridge Protocol Data Unit (BPDU) Guard
Reliability and Resiliency:
- Higher Mean Time Between Failures (MTBF)
- Enhanced Limited Lifetime Warranty (E-LLW)
- Optional dual field-replaceable power supplies ¹.

Physical Specifications

Form Factor: 1 RU Rack Mount
Dimensions: 17.5″ Width x 11″ Depth x 1.75″ Height
Memory: 128 MB Flash, 512 MB DRAM
Forwarding Rate: 71.4 Mpps

The WS-C2960X-24TS-L provides a balance of performance, features, and reliability for your network infrastructure. If you need further details, feel free to ask! ????

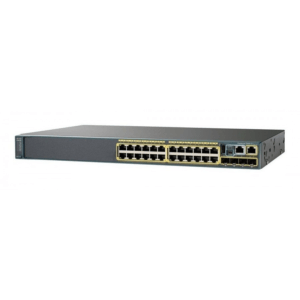

Cisco WS-C2960X-24TS-L switchWS-C2960X-24TS-L

¹: Cisco Catalyst 2960-X and 2960-XR Series Switches Data Sheet
